12. Check Valve Resistance

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
- Torque converter clutch solenoid valve
Check resistance to the terminal and ground.

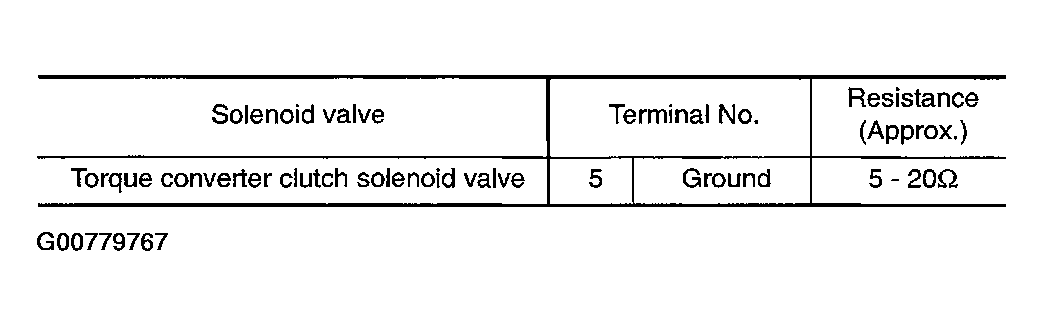

Fig 1: Valve Resistance Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

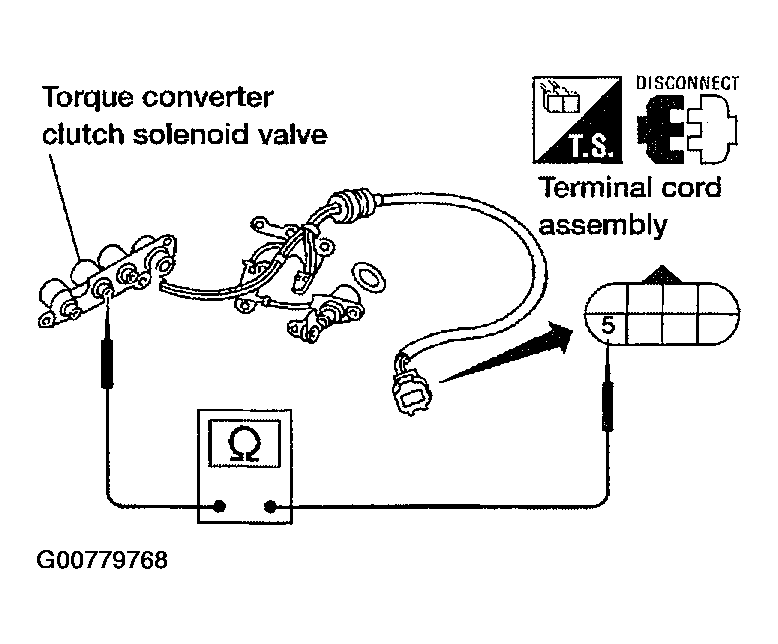

Fig 2: Checking Valve Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 14 .
NG : Replace solenoid valve assembly.
