With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch to ON position. (Do not start engine.)

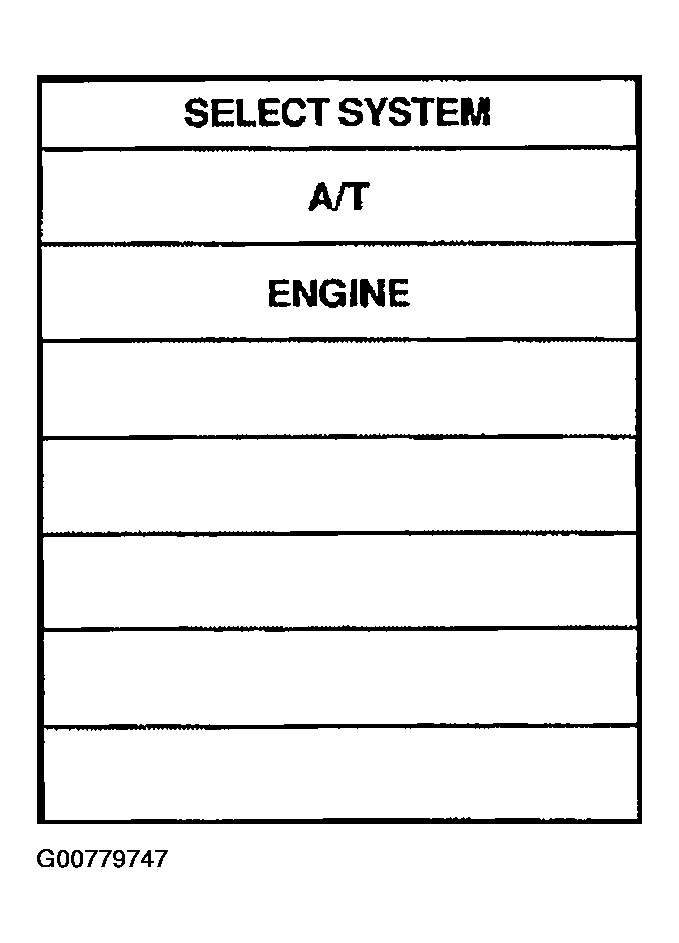

Fig 1: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "DATA MONITOR" mode for "ENGINE" With CONSULT-II and wait at least 1 second.
Start engine and maintain the following condition for at least 5 consecutive seconds.
VHCL SPEED SE: 80km/h (50 MPH) or more

THROTTLE POSI: 0.5/8-1.0/8

Selector lever: D position (O/D ON)

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.

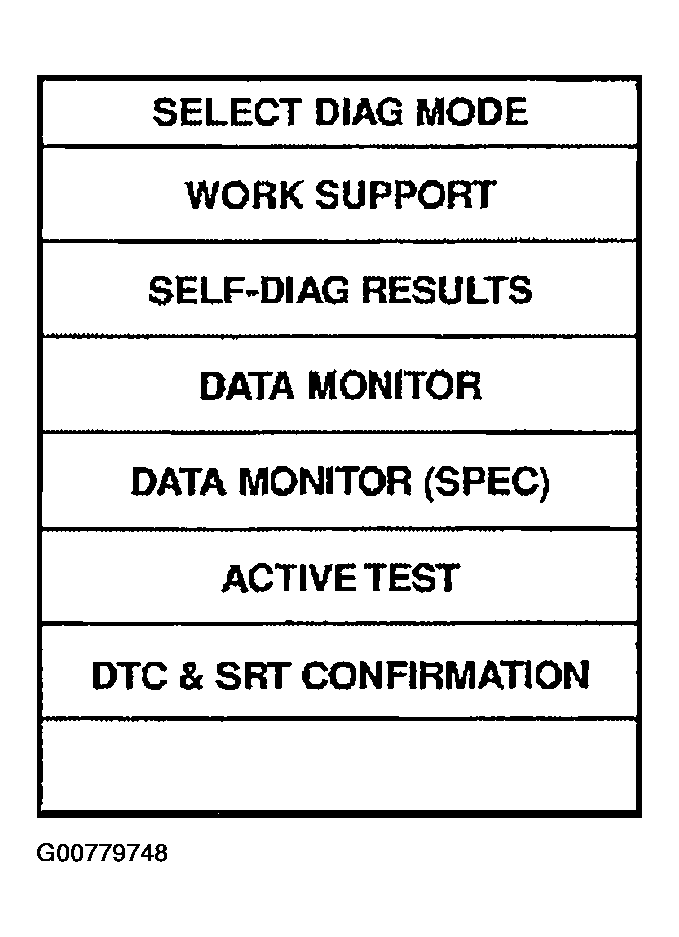

Fig 2: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
