1. Check Valve Resistance

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
- Shift solenoid valve A
- Shift solenoid valve B
Check resistance between two terminals.

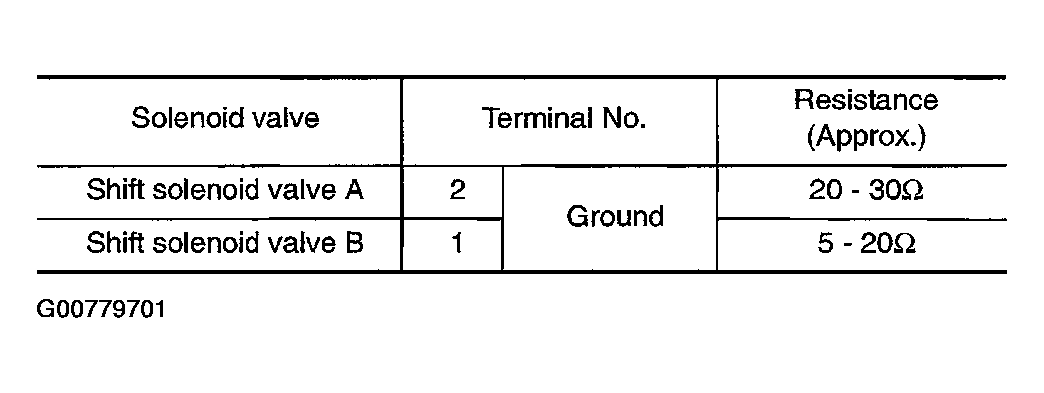

Fig 1: Shift Solenoid Valves "A" & "B" Resistance Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

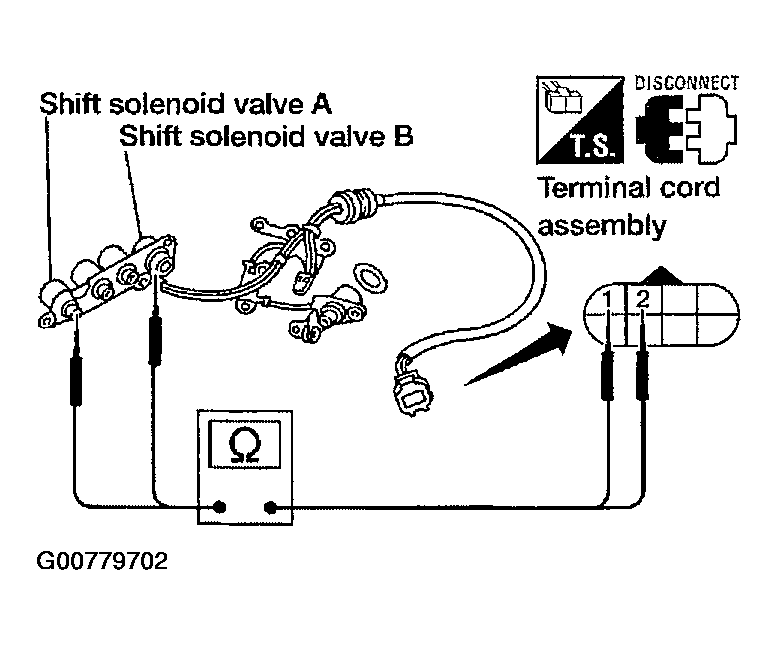

Fig 2: Checking Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 2.
NG : Repair or replace damaged parts.
