With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" With CONSULT-II.

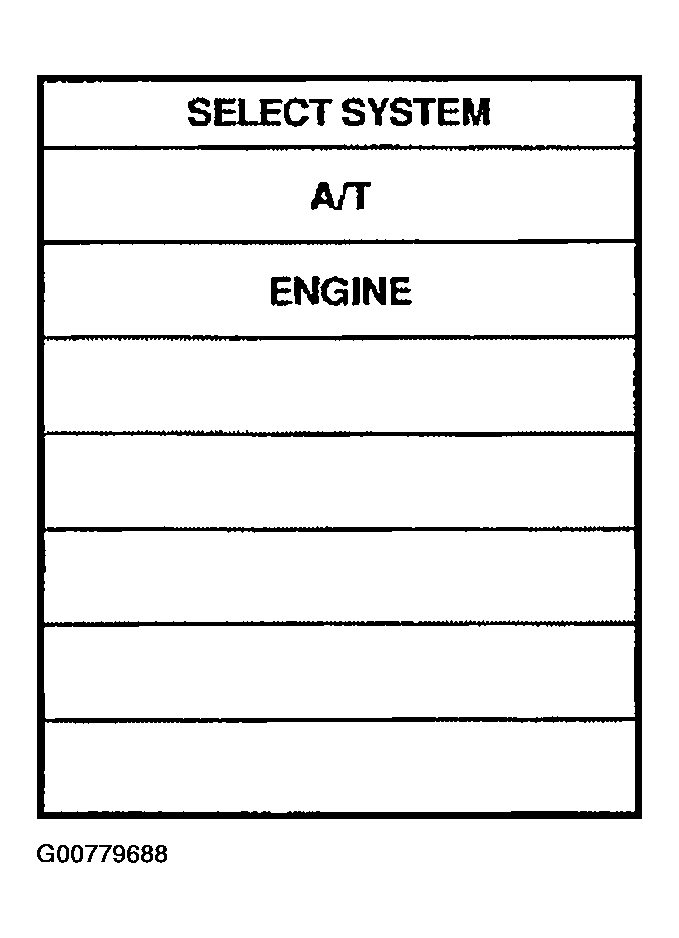

    Fig 1: CONSULT-II Display Screen
    G00779688Courtesy of NISSAN MOTOR CO., U.S.A.

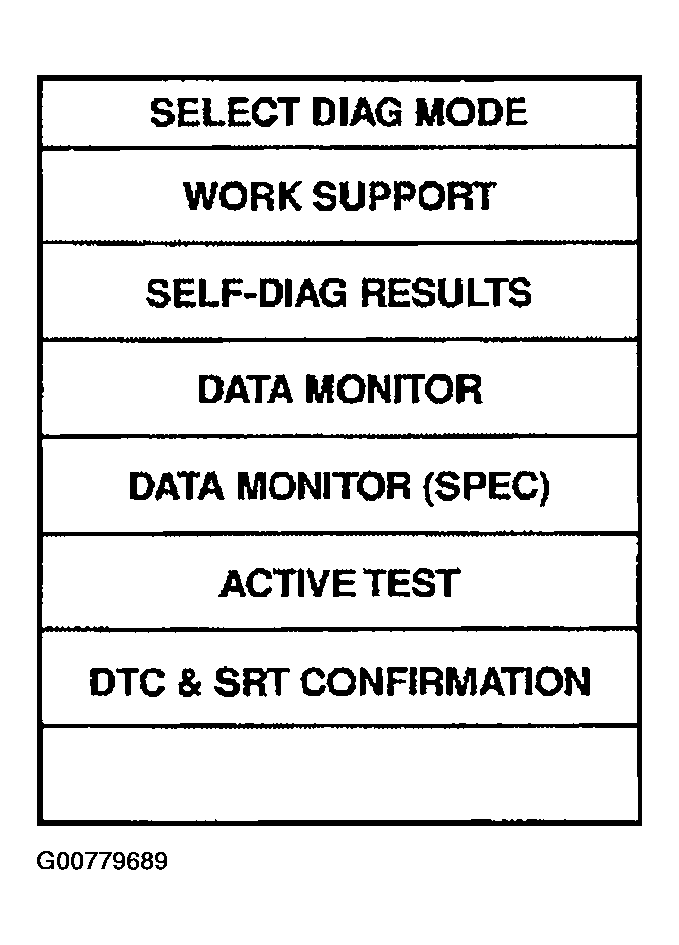

    Fig 2: CONSULT-II Display Screen
    G00779689Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine and maintain the following conditions for at least 10 consecutive seconds.

    VHCL SPEED SE: 10 km/h (6 MPH) or more

    THRTL POS SEN: More than 1.2V

    Selector lever: D position
