Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Start engine.
Check voltage between TCM harness connector F57 terminal 39 (W/G) and ground.
Voltage :0.6 (Idle speed) - 2.2V (3,000 RPM)

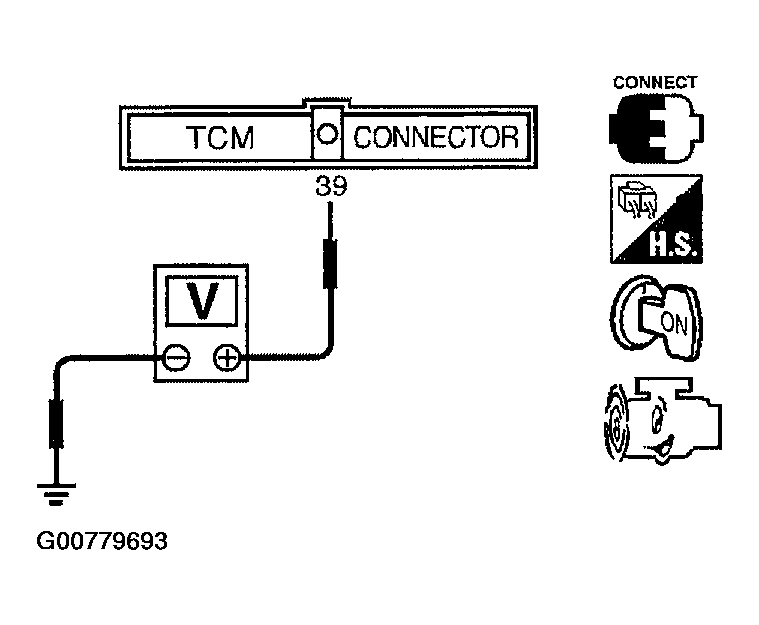

Fig 1: TCM Harness Connector F57 Terminal 39 (W/G)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 5.
NG : GO TO 3 .
