With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Start engine. See Fig 1.

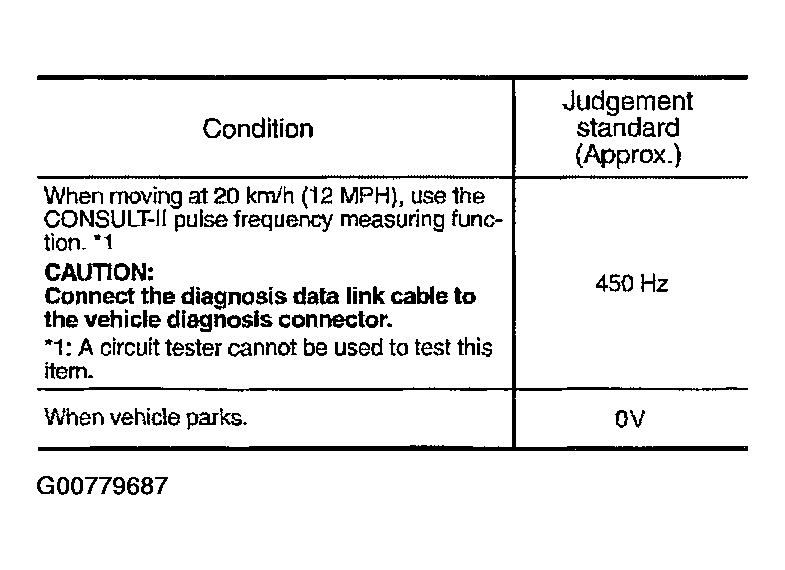

Fig 1: Check Revolution Sensor (With CONSULT-II)
Courtesy of NISSAN MOTOR CO., U.S.A.

Harness for short or open between TCM, ECM and revolution sensor
Harness for short or open between ignition switch and revolution sensor

OK or NG

OK : GO TO 3.
NG : Repair or replace damaged parts.
