With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" With CONSULT-II.

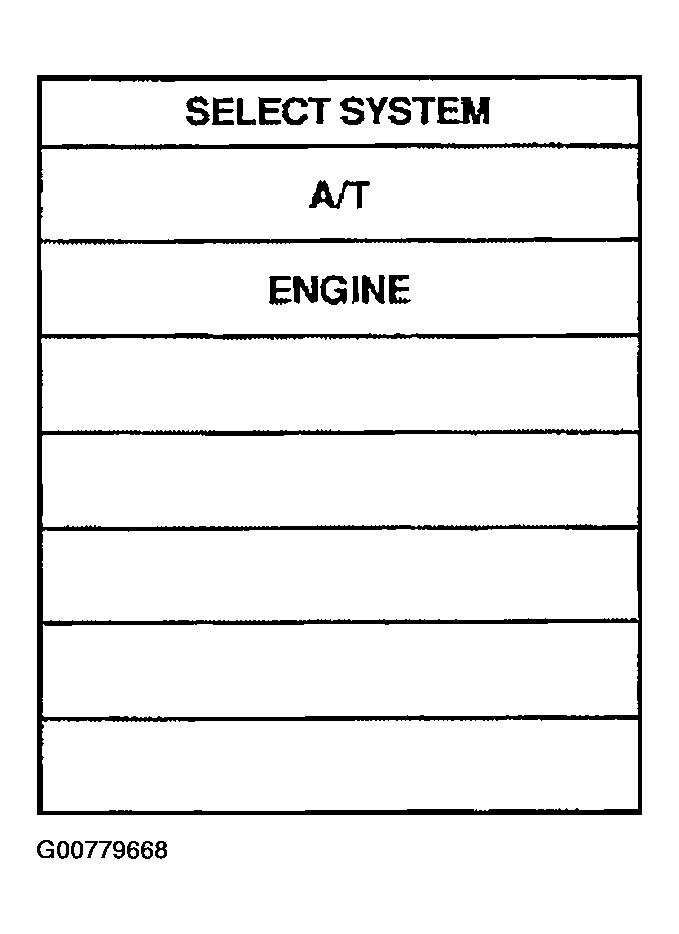

    Fig 1: CONSULT-II Display Screen
    G00779668Courtesy of NISSAN MOTOR CO., U.S.A.

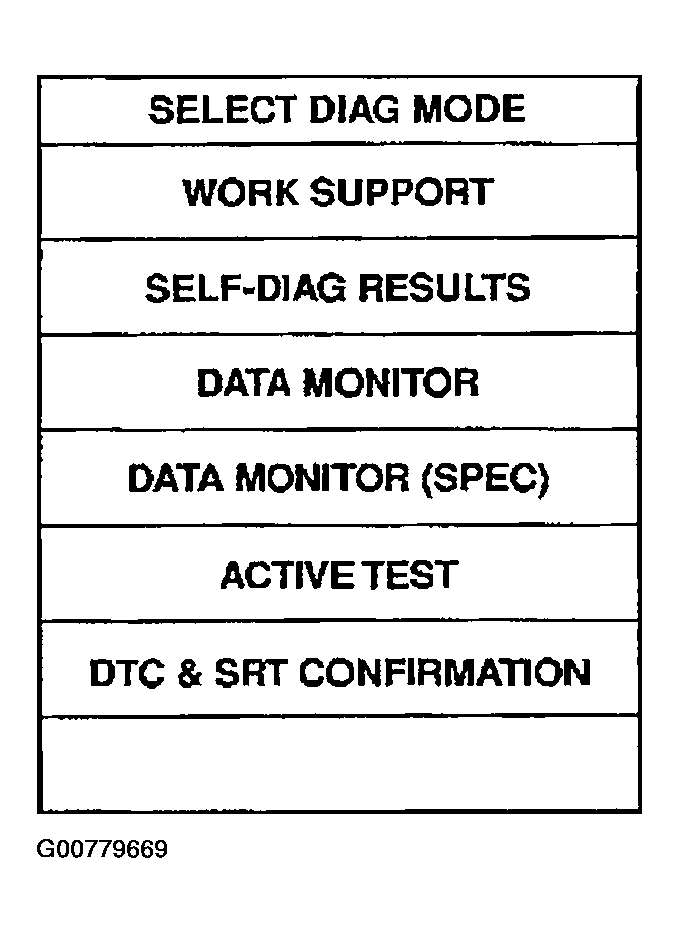

    Fig 2: CONSULT-II Display Screen
    G00779669Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Select "ECM INPUT SIGNALS" touch "START".
  3. Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)

    ENG SPEED: 450 RPM or more

    VEHICLE SPEED: 10 km/h (6 MPH) or more

    THRTL POSI: More than 1.2V

    Selector lever: D position
