Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Check voltage between TCM harness connector F57 terminal 47 (L/Y) and ground while warming up A/T.

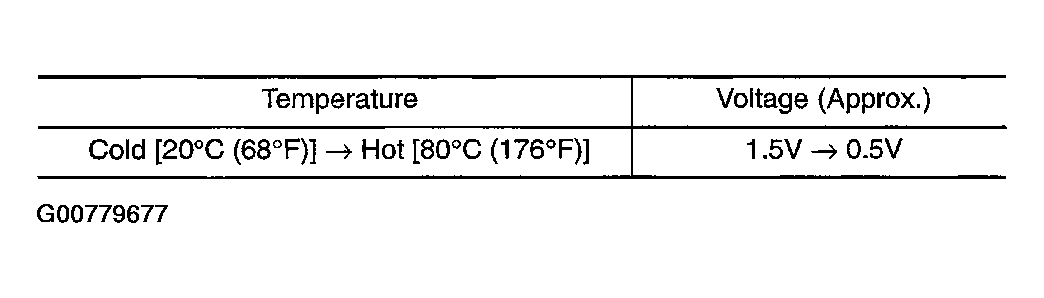

    Fig 1: A/T Fluid Temperature Sensor Voltage Specifications
    G00779677Courtesy of NISSAN MOTOR CO., U.S.A.

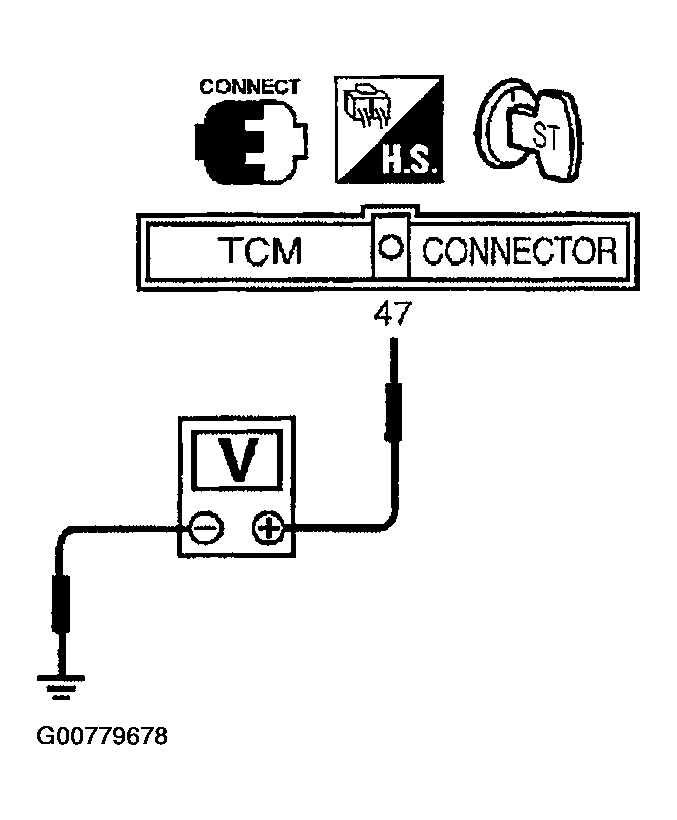

    Fig 2: TCM Harness Connector F57 Terminal 47 (L/Y)
    G00779678Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : GO TO 7.
  2. NG : GO TO 3 .
