5. Detect Malfunctioning Item

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove oil pan. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
Check the following items:

A/T fluid temperature sensor
Check resistance between A/T fluid temperature sensor harness connector F30 terminals 6(L/Y) and 7(B) while changing temperature as shown at below.

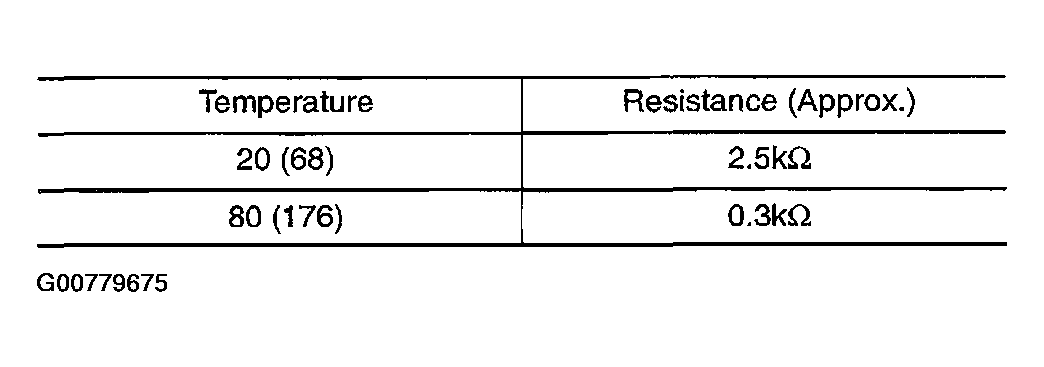

Fig 1: A/T Fluid Temperature Sensor Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

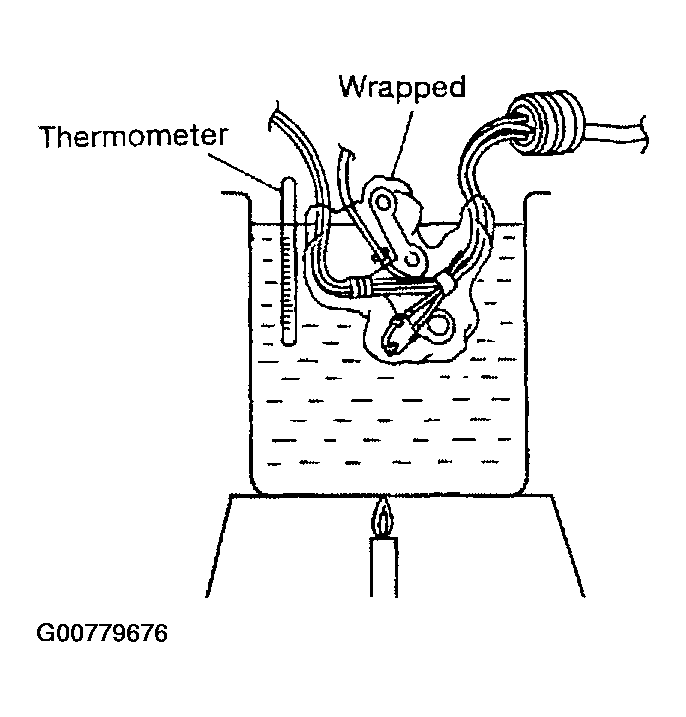

Fig 2: Warming A/T Fluid Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Harness of terminal cord assembly for short or open

OK or NG

OK : GO TO 7 .
NG : Repair or replace damaged parts.
