With CONSULT-II
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch to ON position. (Do not start engine.)

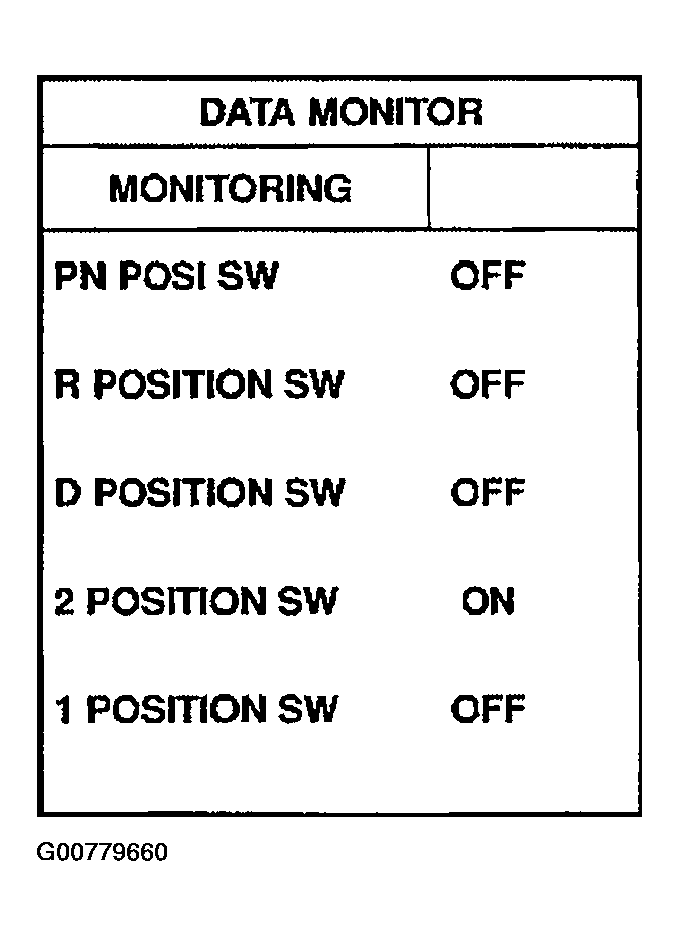

- Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" With CONSULT-II.
- Read out P, R, N, D, 2nd and 1st position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated properly.
OK or NG
- OK : GO TO 7 .
- NG : GO TO 3.
