Wiring Diagram - At - BA/FTS

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

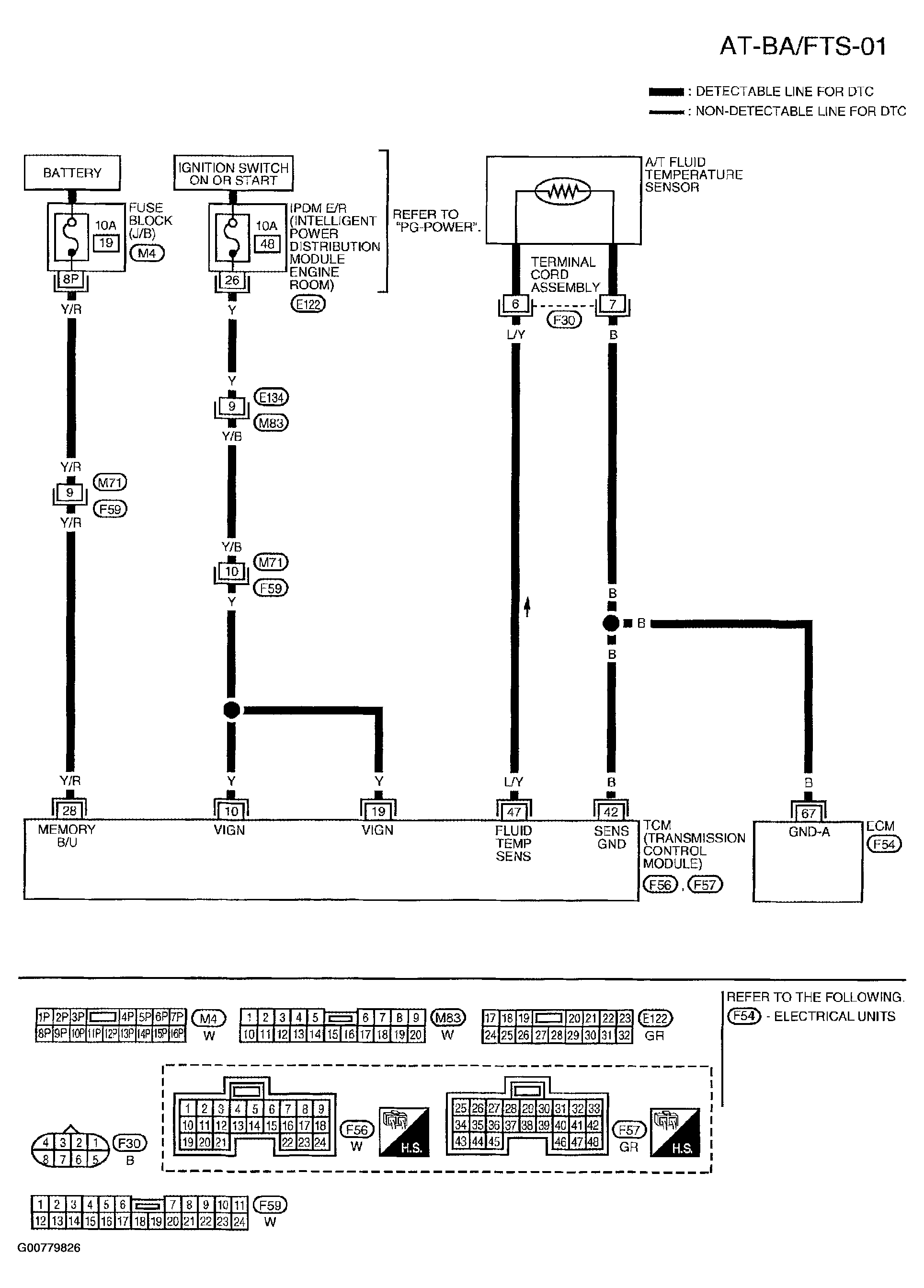

Fig 1: Wiring Diagram - AT-BA/FTS-01
G00779826Courtesy of NISSAN MOTOR CO., U.S.A.

Terminals And Reference Value Measured Between Each Terminal

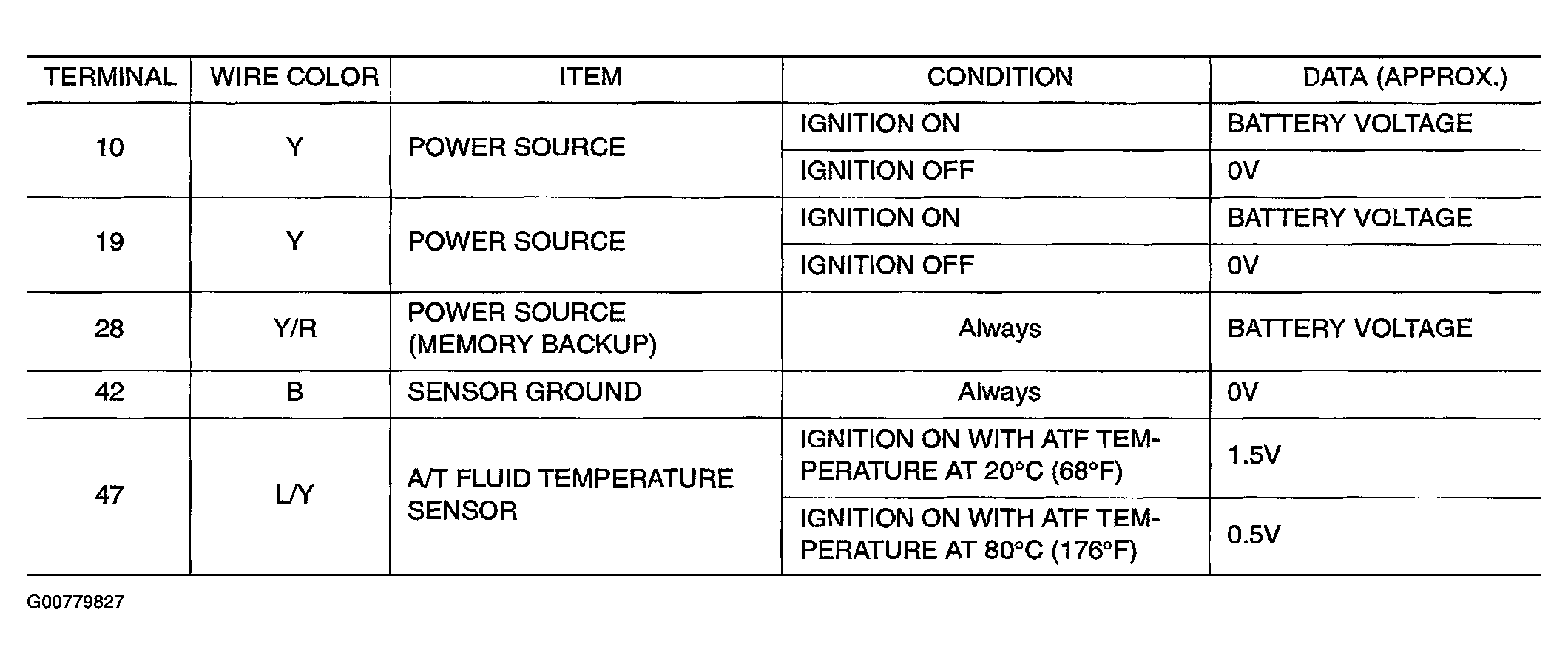

Fig 2: Terminals And Reference Value
G00779827Courtesy of NISSAN MOTOR CO., U.S.A.
