With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "DATA MONITOR" mode for "A/T" With CONSULT-II.

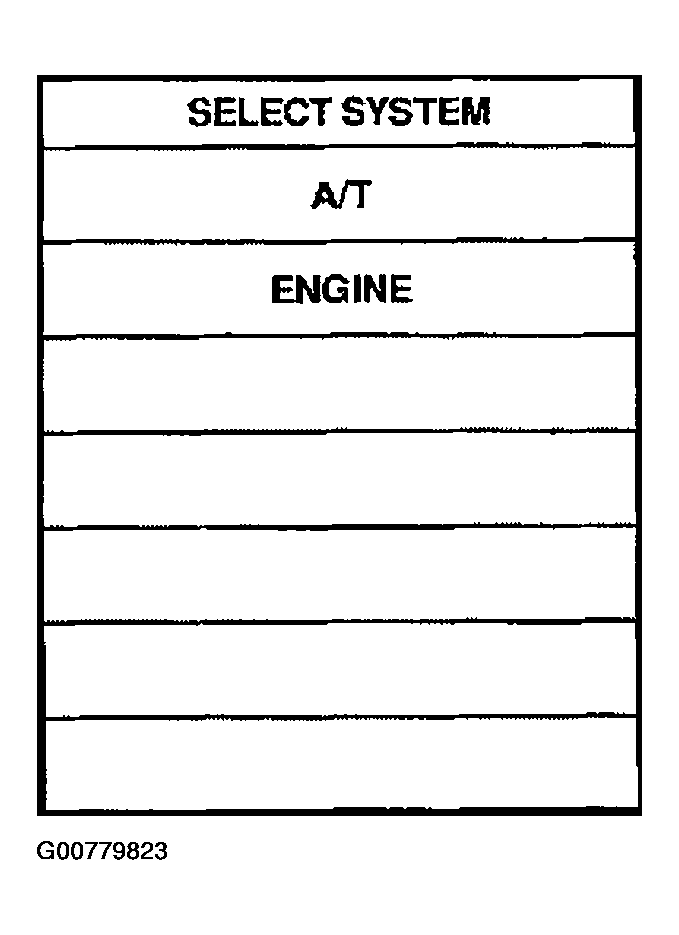

    Fig 1: CONSULT-II Display Screen
    G00779823Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive vehicle under the following conditions:

    Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).

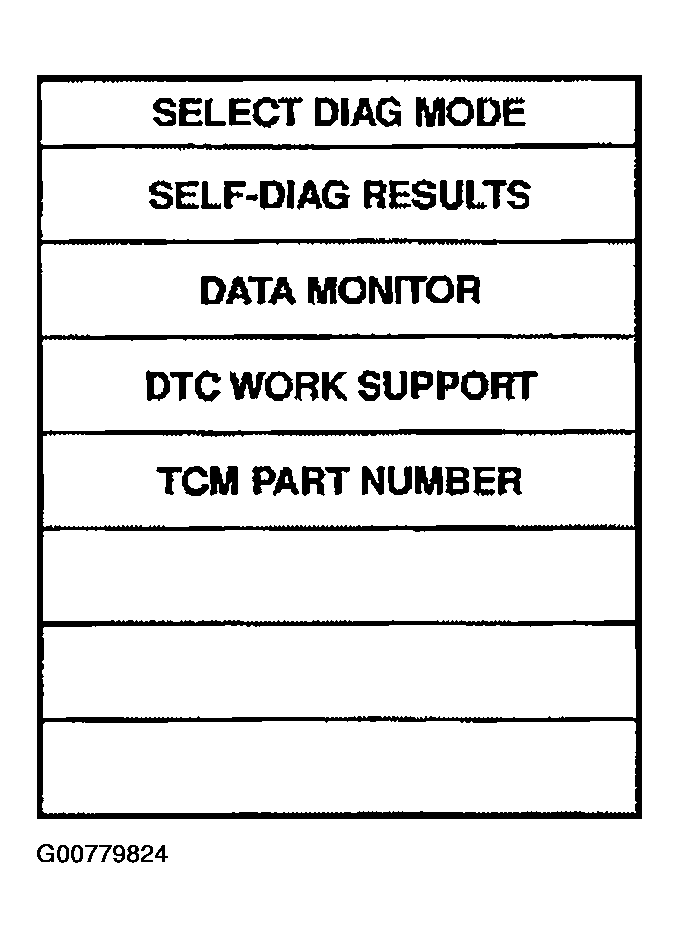

    Fig 2: CONSULT-II Display Screen
    G00779824Courtesy of NISSAN MOTOR CO., U.S.A.
