7. Detect Malfunctioning Item

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove oil pan. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
Check the following items:

A/T fluid temperature sensor
- Check resistance between two terminals while changing temperature as shown.

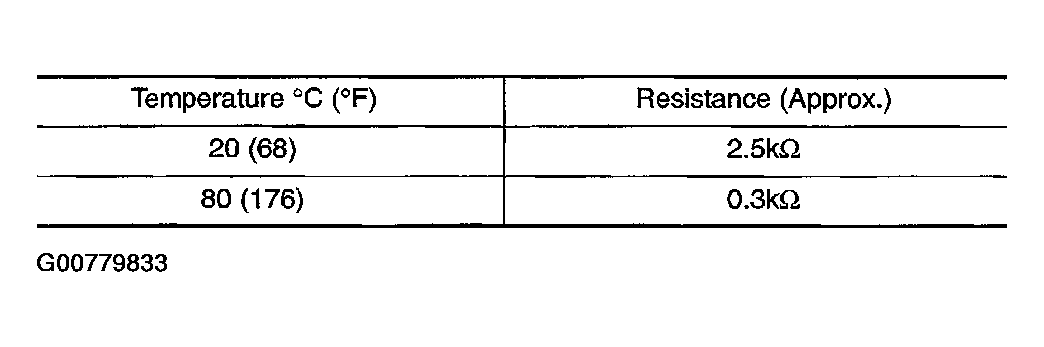

  Fig 1: A/T Fluid Temperature Sensor Resistance Specification Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

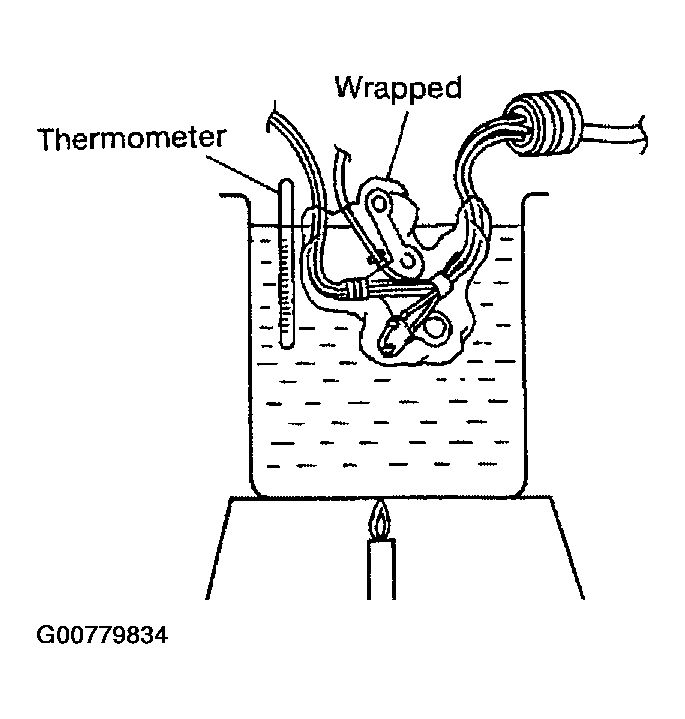

  Fig 2: Heating A/T Fluid Temperature Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.
Harness of terminal cord assembly for short or open

OK or NG

OK (Without CONSULT-II) : GO TO 8.
NG : Repair or replace damaged parts.
