With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" With CONSULT-II.
  3. Read out the value of "FLUID TEMP SE".

    Voltage :Cold [20°C (68°F)] --> Hot [80°C (176°F)]

    :Approximately 1.5V --> 0.5V

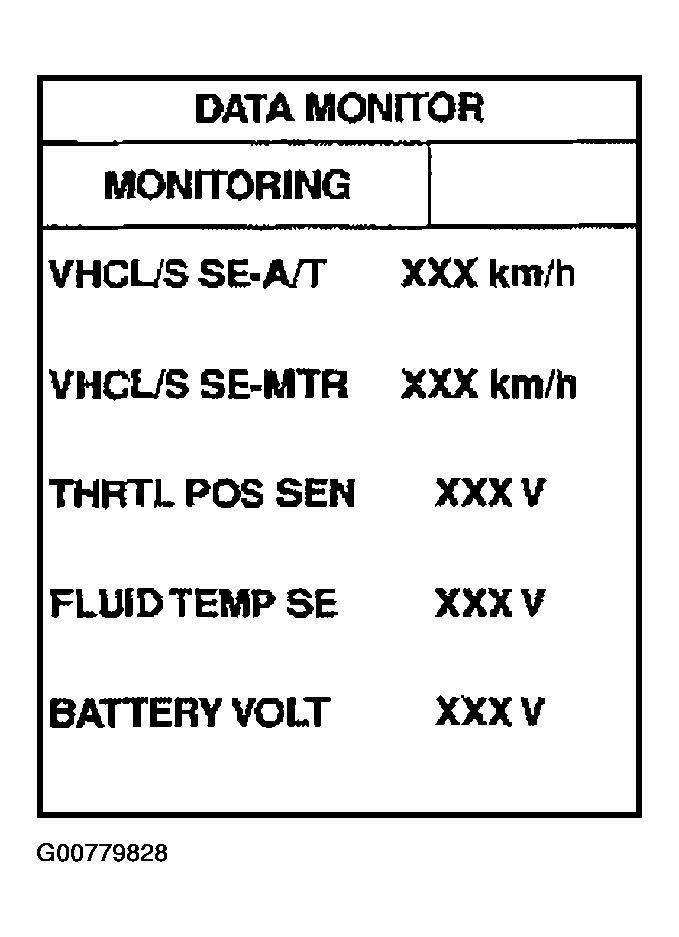

    Fig 1: CONSULT-II Display Screen
    G00779828Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : GO TO 9 .
  2. NG : GO TO 2.
