Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain brake fluid from hydraulic clutch system.
    CAUTION: Do not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
  2. Remove union bolt and clutch hose from operating cylinder.
  3. Remove operating cylinder mounting bolts, and remove cylinder from vehicle.

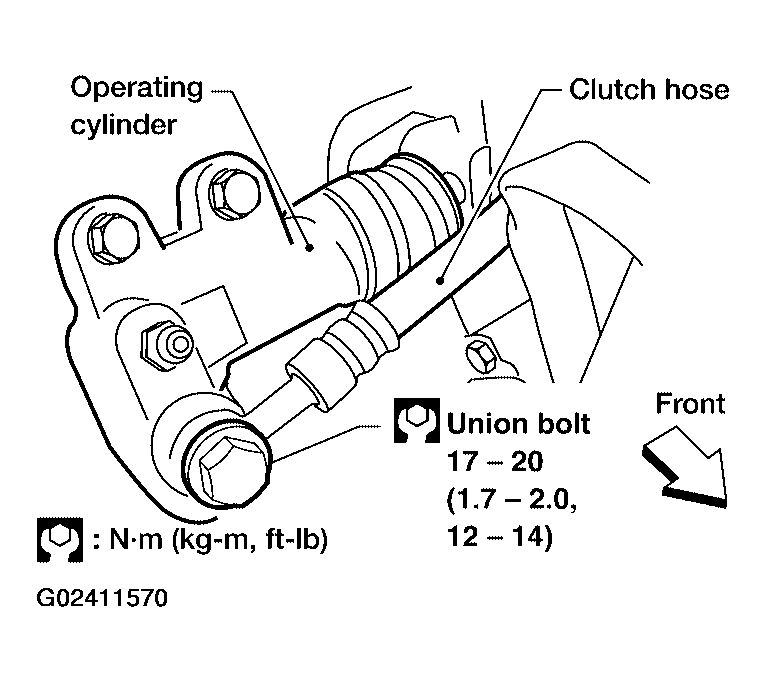

    Fig 1: Removing Union Bolt And Clutch Hose From Operating Cylinder With Torque Specifications
    G02411570Courtesy of NISSAN MOTOR CO., U.S.A.
