Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

When installing clutch hose to bracket, face lock plate in the correct direction as shown to secure clutch hose.
CAUTION: Install clutch hose without twisting or bending it.

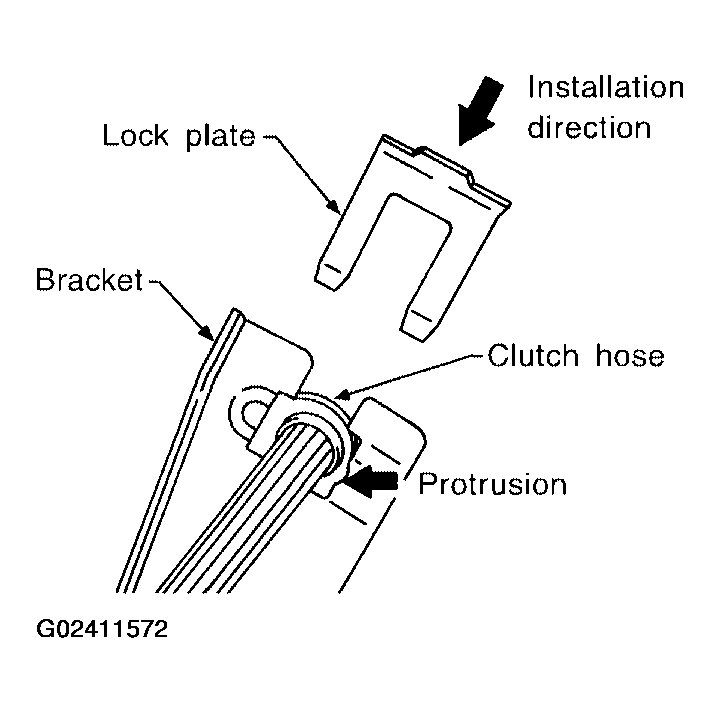

Fig 1: Installing Lock Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten flare nut to the specification, using a flare nut wrench.
Flare nut : 15 - 18 N.m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

CAUTION: Be careful not to damage flare nut and clutch tube.
Install clutch hose to operating cylinder, and tighten the union bolt to the specification.
Clutch hose union bolt : 17 - 20 N.m (1.7 - 2.0 kg-m, 12 - 14 ft-lb)
After installation, bleed the air from the clutch hydraulic system. Refer to "Air Bleeding Procedure ".
