Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the push rod lock nut "A" to remove clevis and lock nut "A".

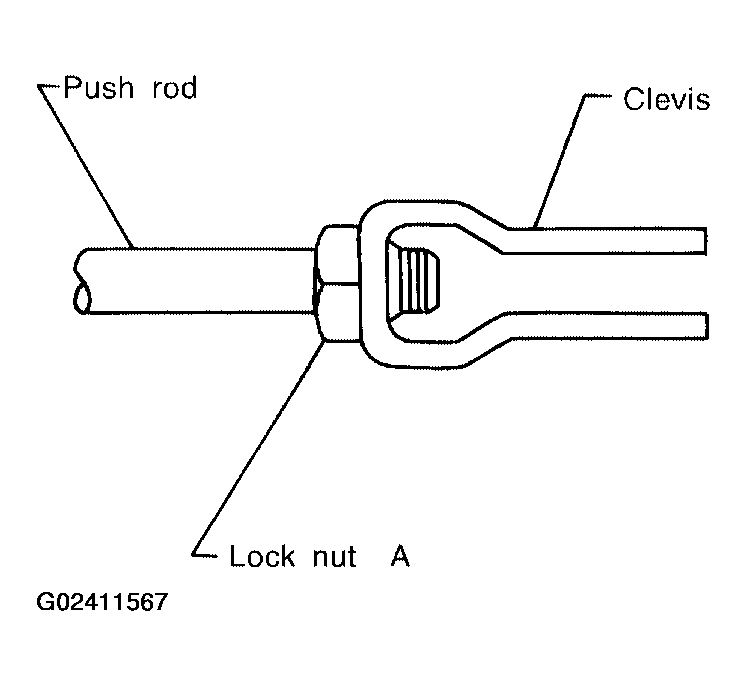

    Fig 1: Loosen The Push Rod Lock Nut "A"
    G02411567Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the dust cover.
  3. Remove the stopper ring and stopper, and remove the push rod from the cylinder body. During removal, keep the push rod depressed, to prevent the piston inside master cylinder from popping out.
  4. Remove the piston assembly from the cylinder body.
