Removal And Installation: Installation
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
- Insert Tool into clutch disc hub when installing clutch cover and disc.
- Be careful not to allow grease to contaminate clutch facing.

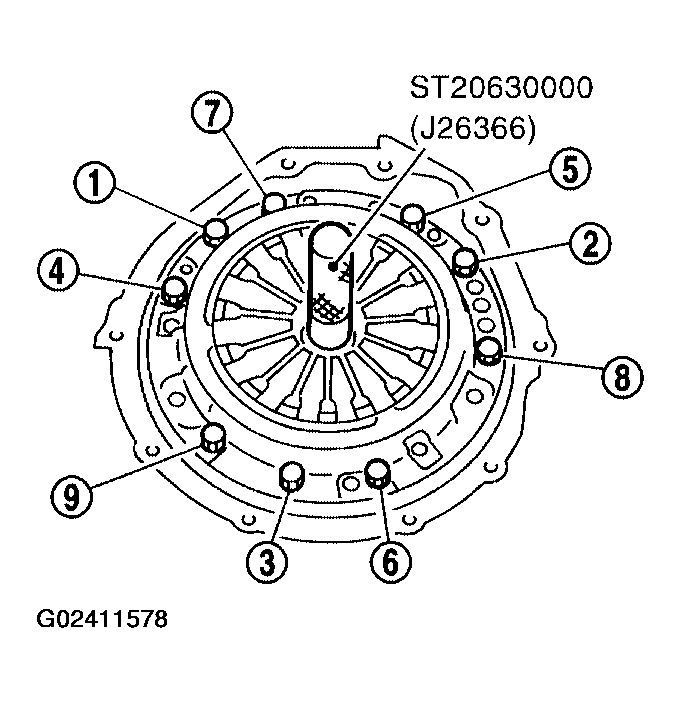

- Tighten the clutch cover bolts in the numerical order as shown, in two steps.
First step : 10 - 20 N.m (1.0 - 2.0 kg-m, 7 - 14 ft-lb)
Final step : 35 - 44 N.m (3.5 - 4.5 kg-m, 26 - 32 ft-lb)
