Clutch Disc

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

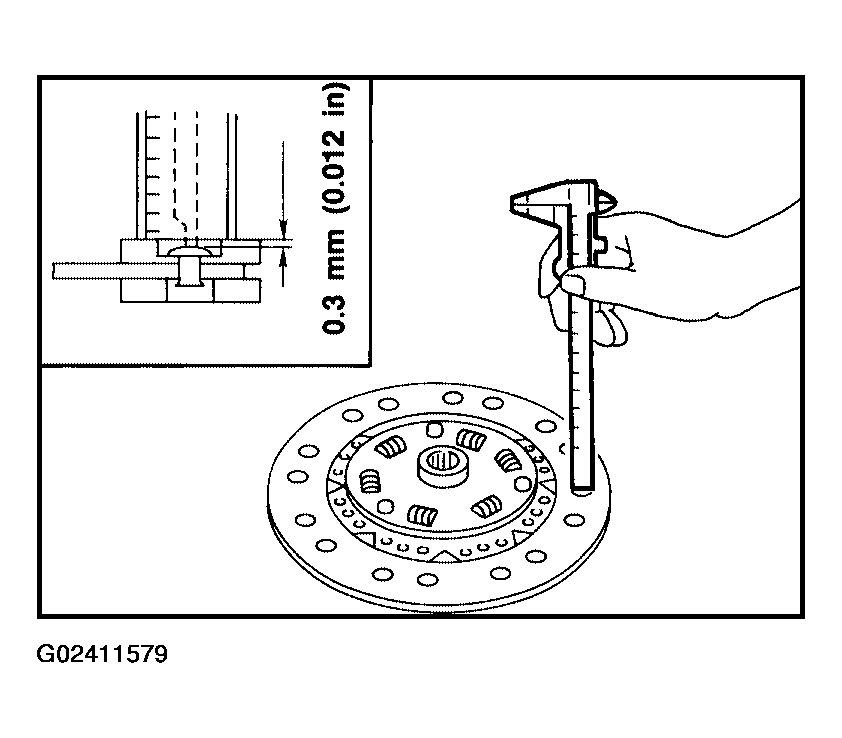

Check clutch disc for wear of facing.
Wear limit of facing surface to rivet head : 0.3 mm (0.012 in)

Fig 1: Inspecting Clutch Disc (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

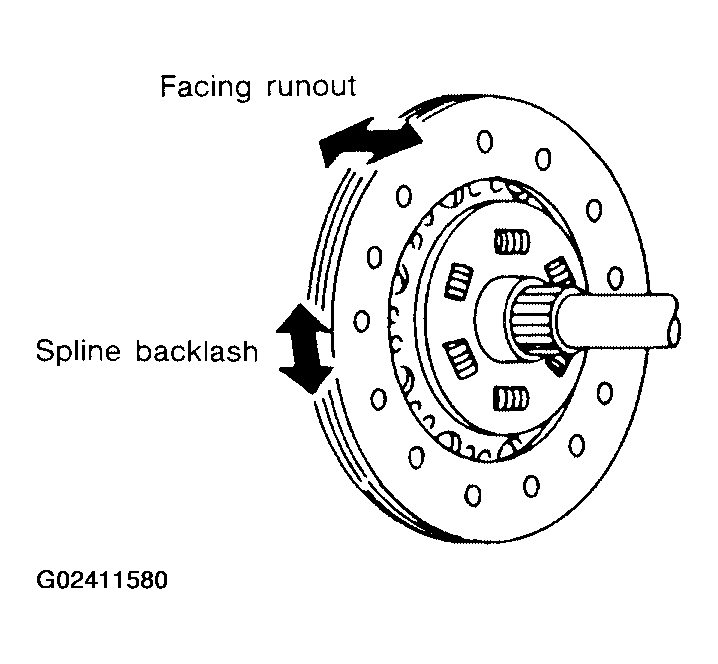

Check clutch disc for backlash of spline and runout of facing.
Maximum backlash of spline (at outer edge of disc) : 1.0 mm (0.039 in)

Runout limit : 0.7 mm (0.028 in)

Distance of runout check point (from hub center) : 240 mm (9.45 in)
Check clutch disc for burns, discoloration or oil or grease leakage. Replace if necessary.

Fig 2: Inspecting Clutch Disc (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
