Adjusting Shim

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

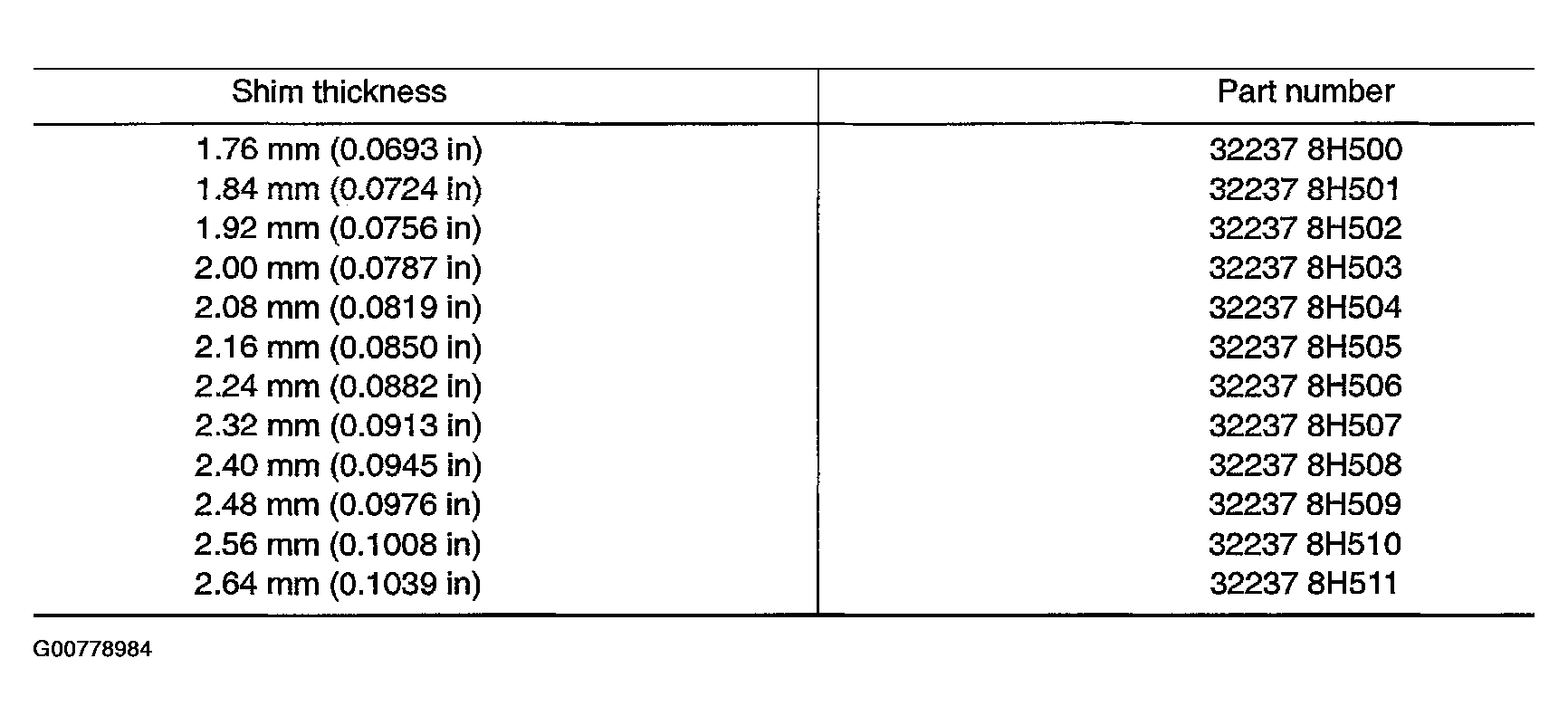

Fig 1: Available Adjusting Shim
G00778984Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Using a depth micrometer and straight edge, measure the dimension "Q1" between the transaxle case end face and the mounting face of the adjusting shim as shown.

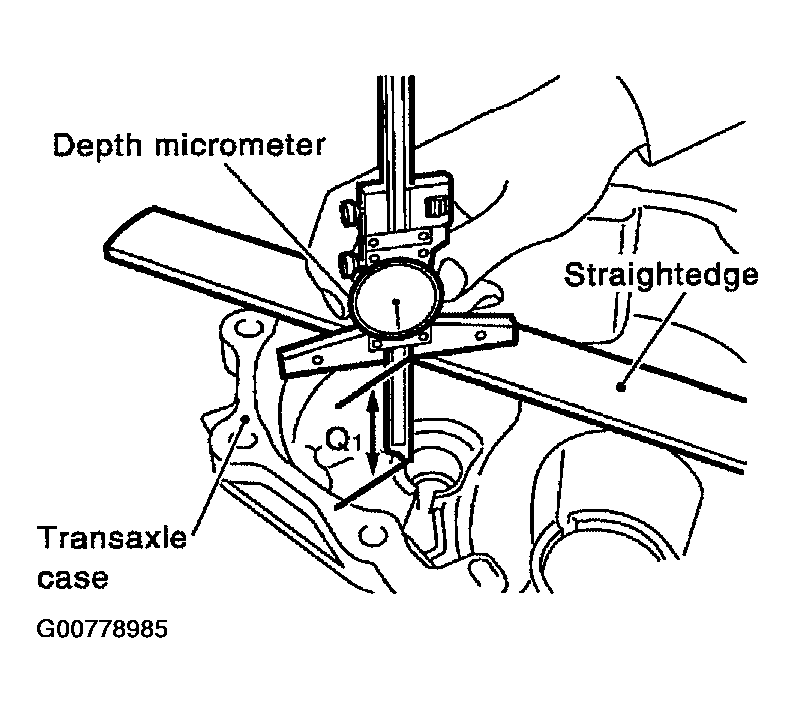

    Fig 2: Using A Depth Micrometer And Straight Edge, Measure The Dimension "Q1"
    G00778985Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Using a depth micrometer and straight edge, measure the dimension "Q2" between the clutch housing case end face and the end face of reverse idler gear as shown.

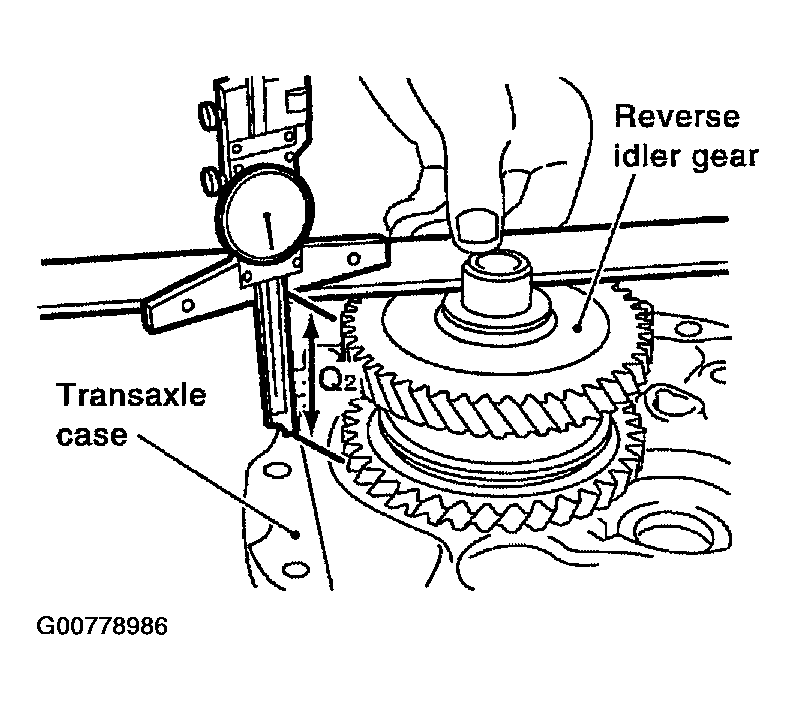

    Fig 3: Using A Depth Micrometer And Straight Edge, Measure The Dimension "Q2"
    G00778986Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the selected reverse idler gear adjusting shim onto the reverse idler gear.
