Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive shaft from the transaxle body. Refer to "AXLE SHAFT ".
  2. Remove the oil seal with a slotted screwdriver as shown.
    CAUTION: Be careful not to damage the case surface when removing the oil seal.

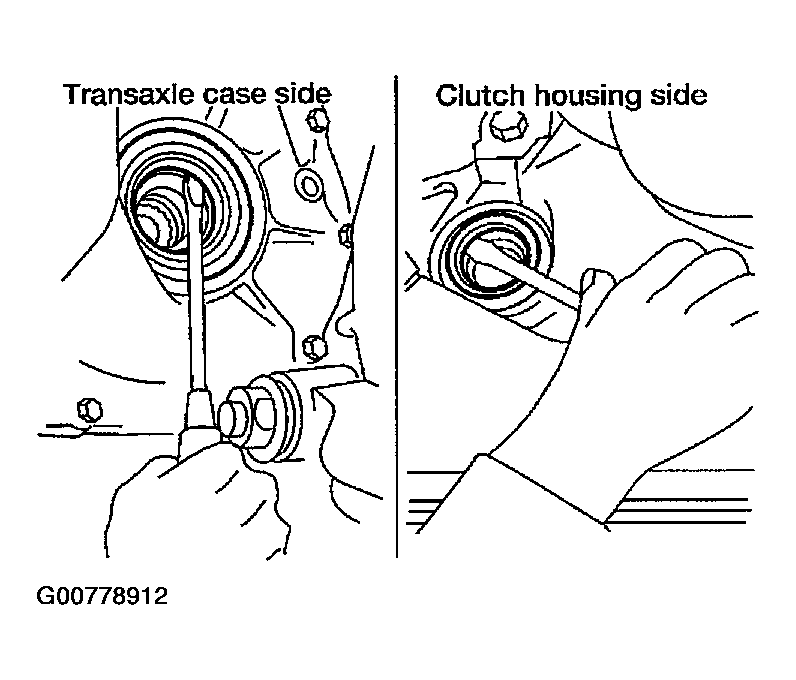

    Fig 1: Remove the oil seal with a slotted screwdriver as shown
    G00778912Courtesy of NISSAN MOTOR CO., U.S.A.
