Section 419 (Manual Transaxle)
>>
Service Data And Specifications (SDS)
>>
Clearance Between Baulk Ring And Gear
>>
3rd, 4th, 5th, 6th & Reverse Baulk Ring
3rd, 4th, 5th, 6th & Reverse Baulk Ring
WARNING:
This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

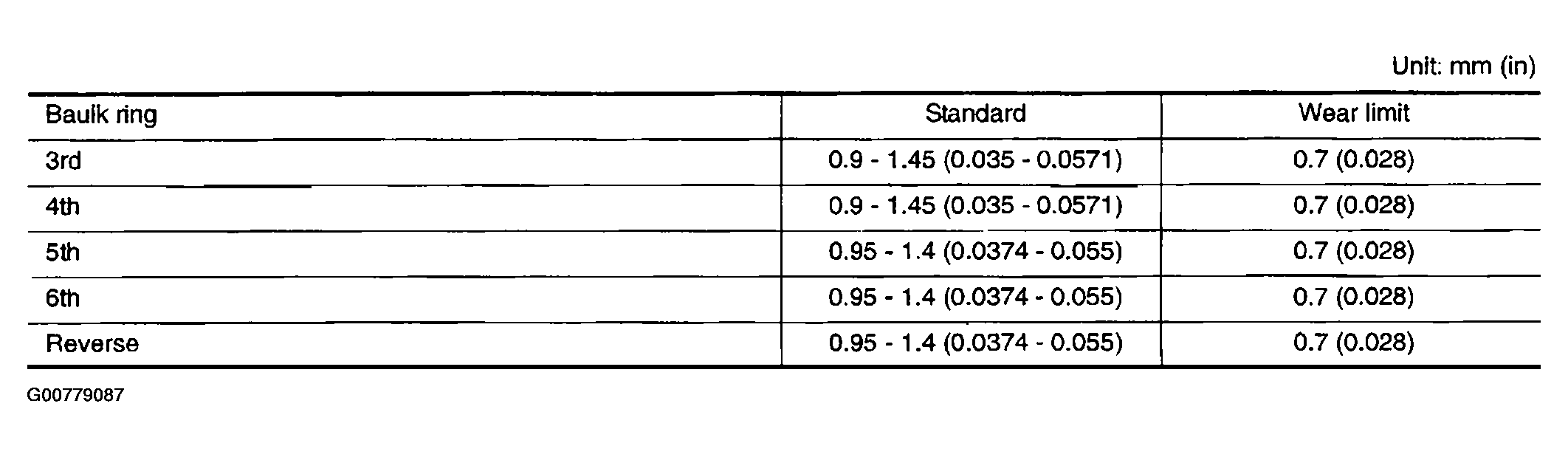

Fig 1: 3rd, 4th, 5th, 6th & Reverse Baulk Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
