Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Assembly is in the reverse order of disassembly.

CAUTION:
  • Install the insert spring with the orientation as shown.

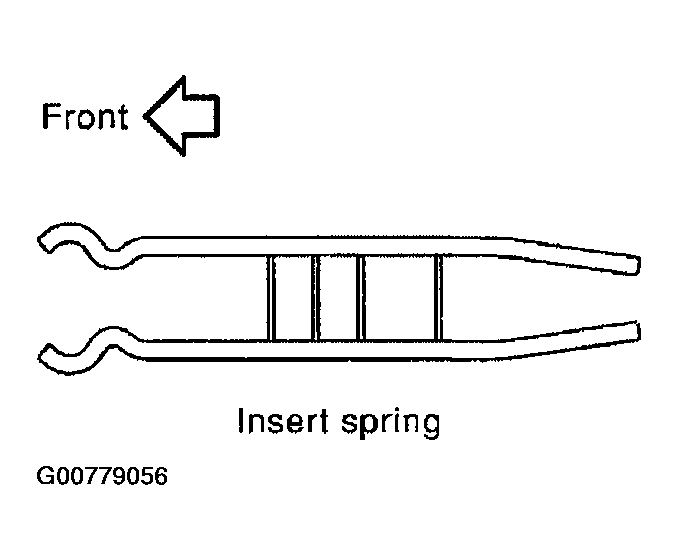

Fig 1: Install The Insert Spring With The Orientation As Shown
G00779056Courtesy of NISSAN MOTOR CO., U.S.A.
