Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mounting bolts. Then, separate the final gear from the differential case.
  2. Remove the speedometer drive gear.
  3. Using a puller and Tool (drift), remove the differential side bearing (clutch housing side) as shown.

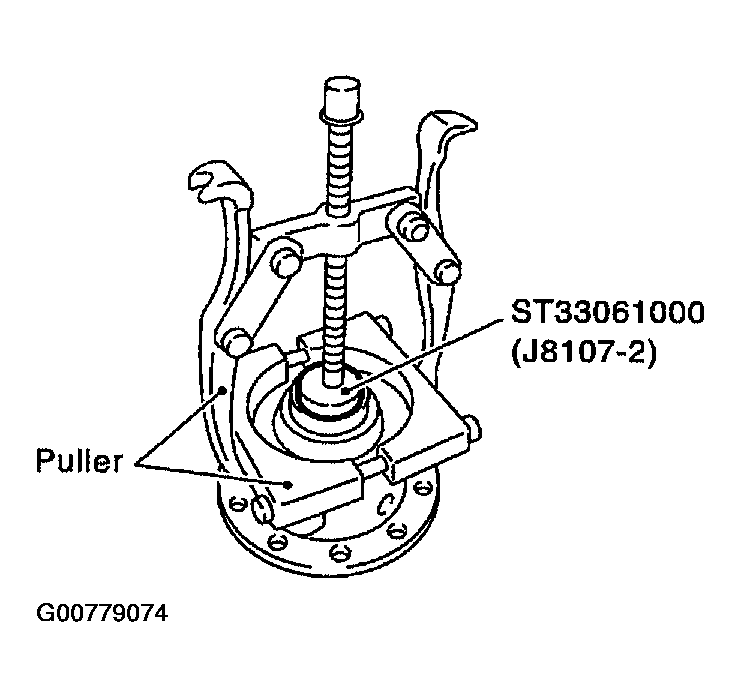

    Fig 1: Using A Puller And Tool (Drift), Remove The Differential Side Bearing (Clutch Housing Side) As Shown
    G00779074Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Using a puller and Tool (drift), remove the differential side bearing (transaxle case side) as shown.

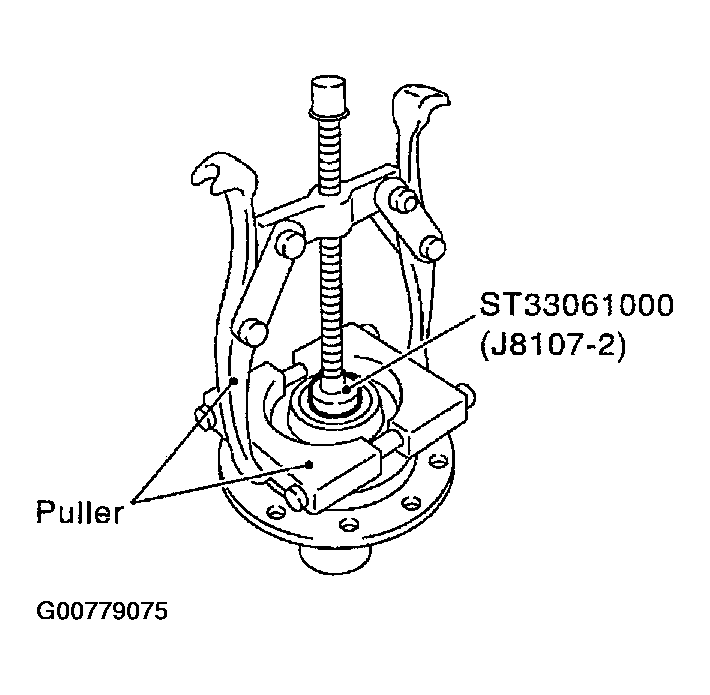

    Fig 2: Using A Puller And Tool (Drift), Remove The Differential Side Bearing (Transaxle Case Side) As Shown
    G00779075Courtesy of NISSAN MOTOR CO., U.S.A.
