Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

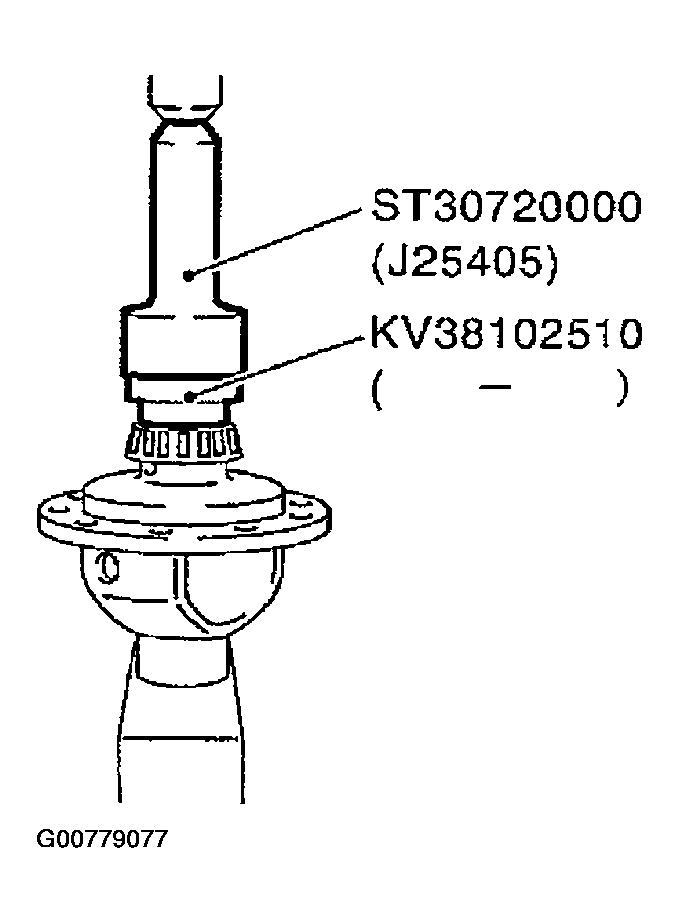

Using Tool (drift), install the differential side bearing (transaxle case side) as shown.

Fig 1: Using Tool (Drift), Install The Differential Side Bearing (Transaxle Case Side) As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.

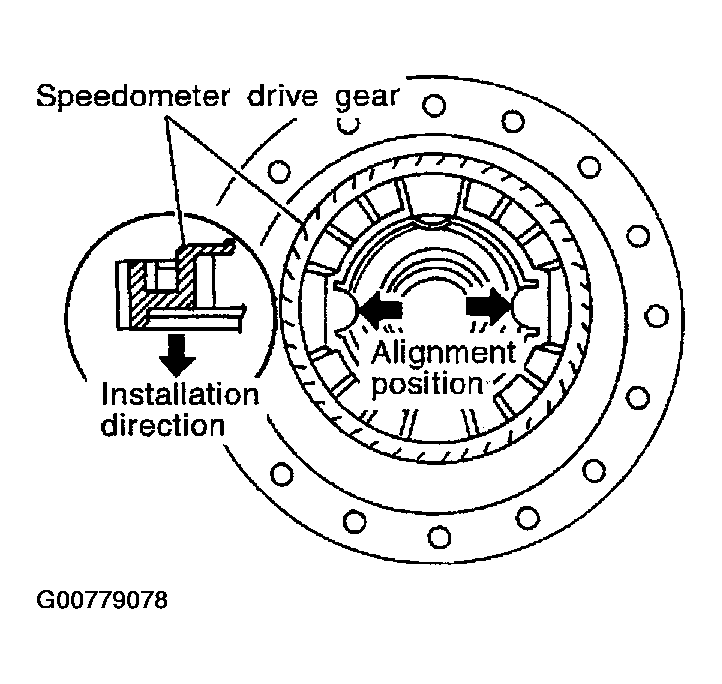

Align and install the speedometer drive gear onto the differential case as shown.

Fig 2: Align And Install The Speedometer Drive Gear Onto The Differential Case As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.

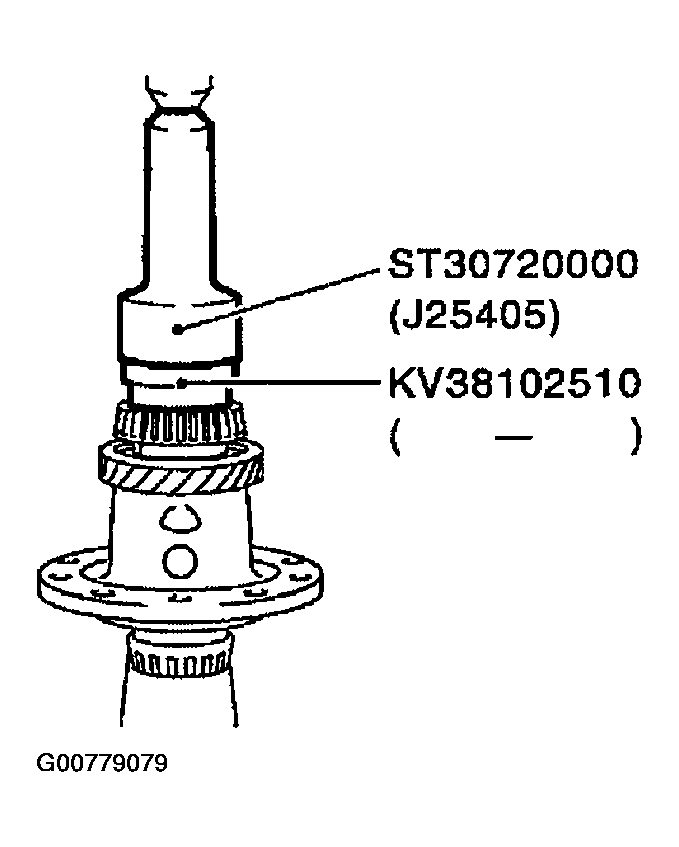

Using Tool (drift), install the differential side bearing (clutch housing side) as shown.

Fig 3: Using Tool (Drift), Install The Differential Side Bearing (Clutch Housing Side) As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.

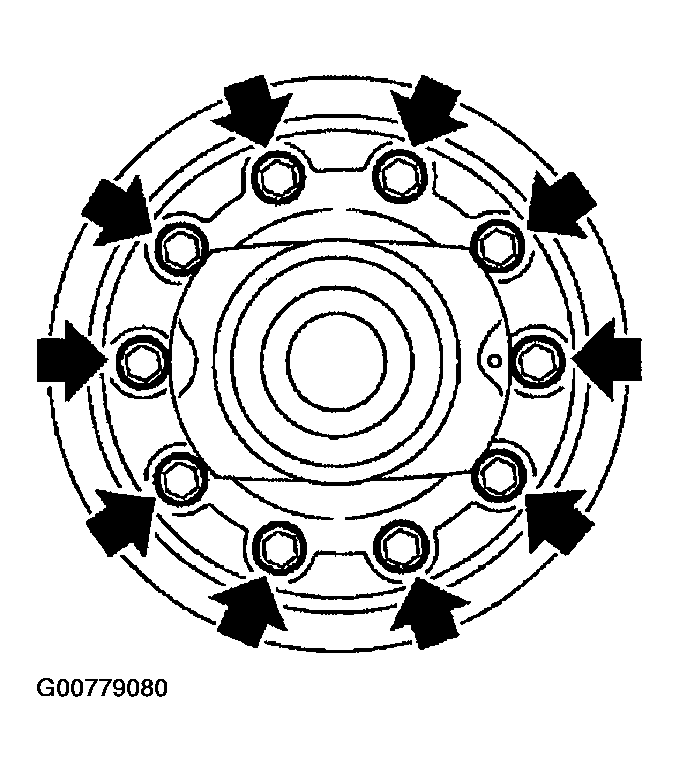

Install the final gear into the differential case, and tighten the final gear bolts to specification.
Final gear bolts : 122.5 - 137.5 N.m (13 - 14 kg-m, 91 - 101 ft-lb)

Fig 4: Install The Final Gear Into The Differential Case, And Tighten Bolts To Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
