Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Apply gear oil to sliding area of differential case, each gear, and thrust washer.
Install side gear thrust washers and side gears into differential case as shown.

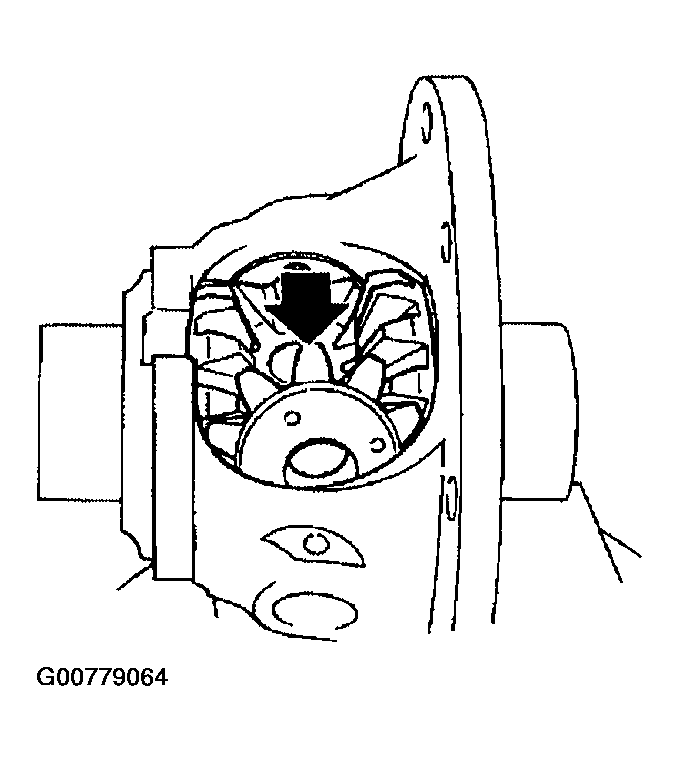

Fig 1: Stall Side Gear Thrust Washers And Side Gears Into Differential Case As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
While rotating pinion mate thrust washers and pinion mate gears, and aligning them diagonally, install them into differential case.
Insert pinion mate shaft into differential case as shown.
CAUTION: Be sure not to damage pinion mate thrust washers.

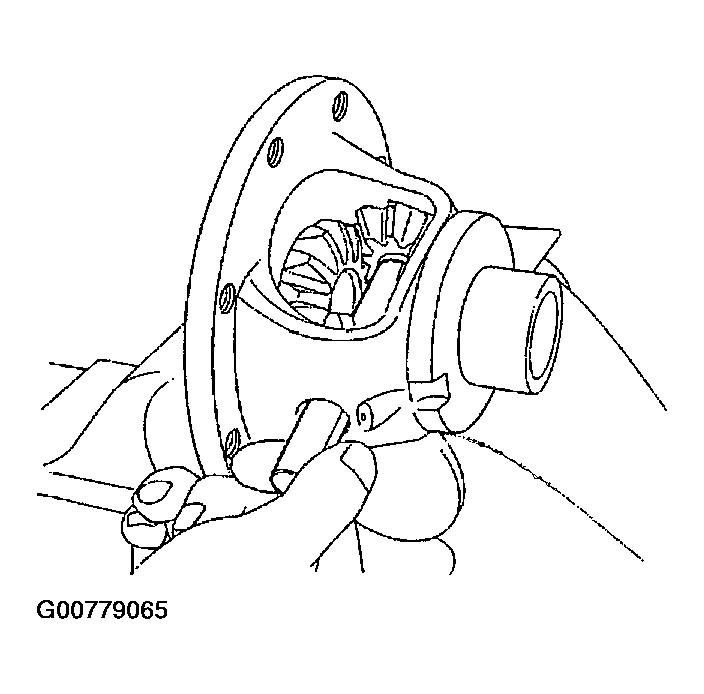

Fig 2: Insert Pinion Mate Shaft Into Differential Case As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure end play of side gears, using the procedure below. Then select side gear thrust washer.
1. Upright the differential case so that its side gear to be measured faces upward.

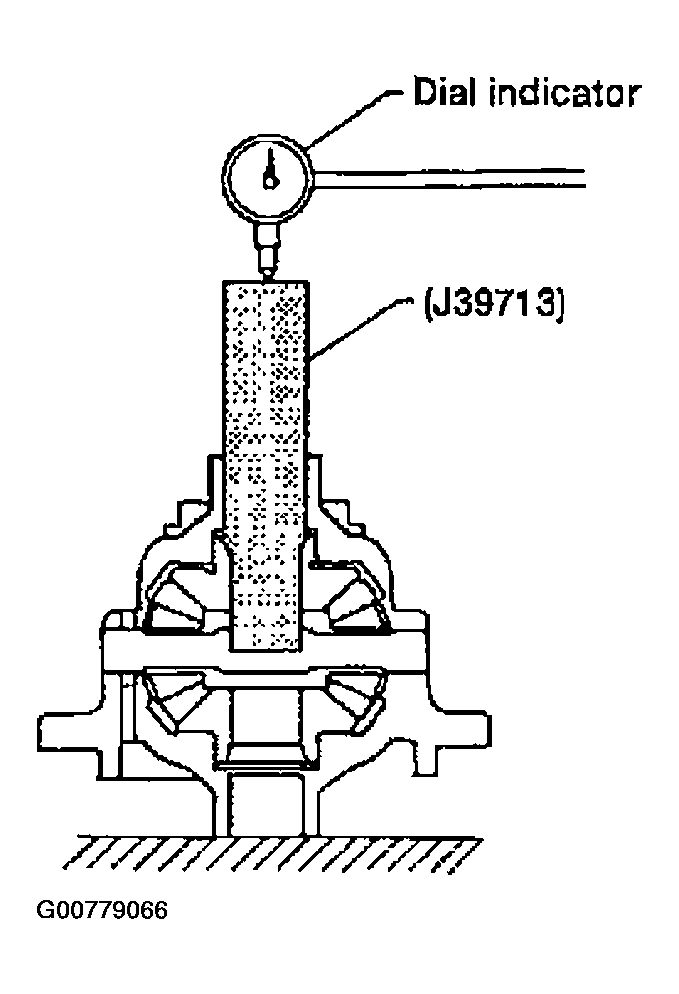

2. Place final drive adapter and dial indicator onto side gears as shown.

  Fig 3: Place Final Drive Adapter And Dial Indicator Onto Side Gears As Shown
  Courtesy of NISSAN MOTOR CO., U.S.A.

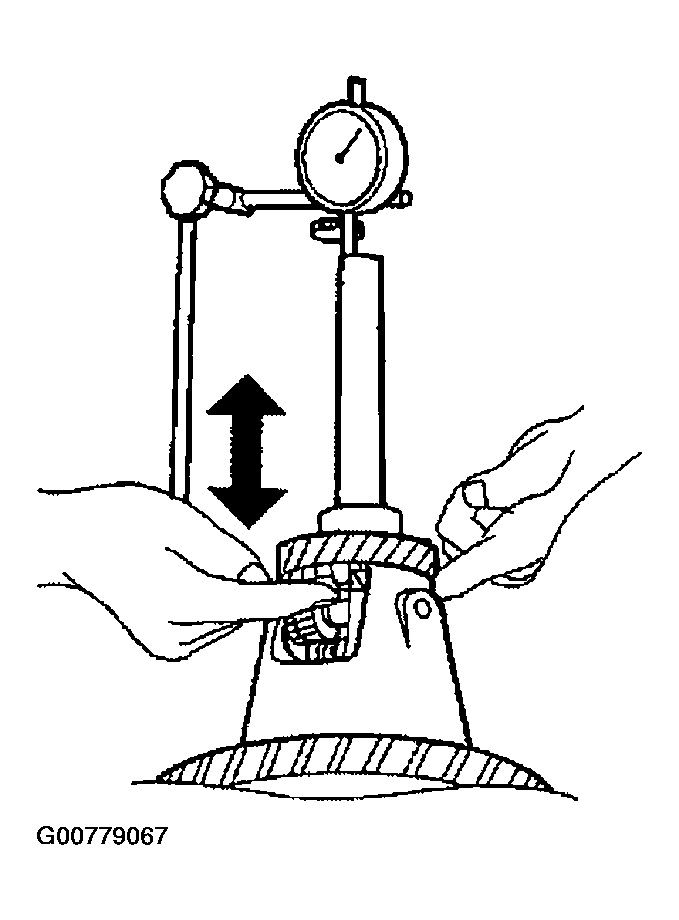

3. Move side gears up and down to measure end play, and select thrust washer so that it meets specification.

  Fig 4: Move Side Gears Up And Down To Measure End Play
  Courtesy of NISSAN MOTOR CO., U.S.A.

  End play standard value : 0.1 - 0.2 mm (0.004 - 0.008 in)
CAUTION:
- There must be no resistance and the gears must rotate freely.
- Place differential case upside down. Measure the end play for opposite side-gears using the same procedure.
- Only one thrust washer can be selected.
Thrust washers

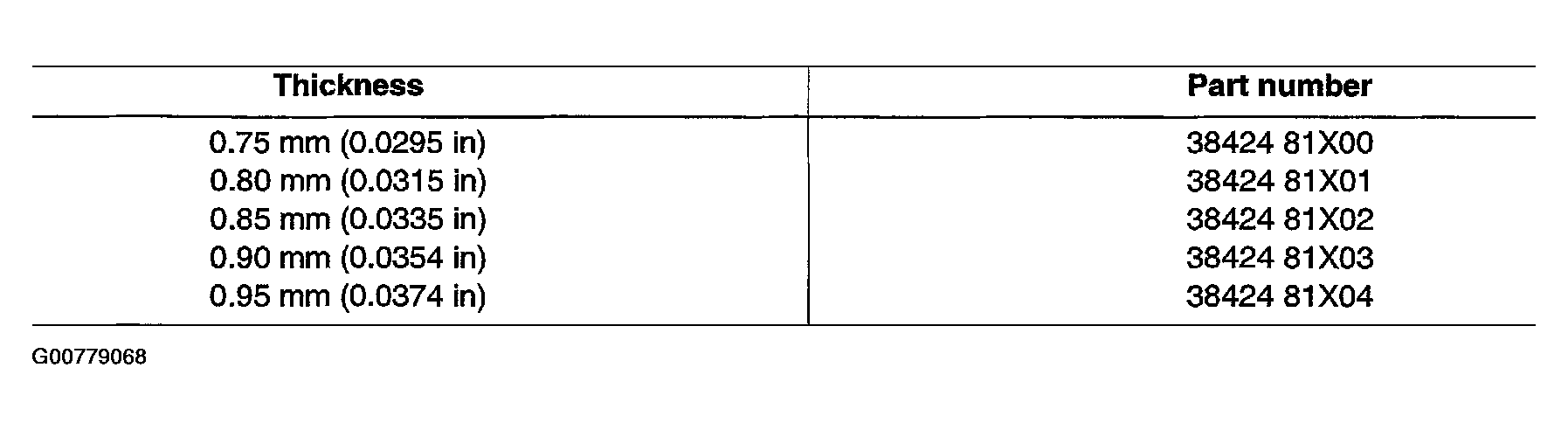

Fig 5: Available Thrust Washers
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive a new lock pin into the pinion mate shaft using a pin punch as shown.
CAUTION: Do not reuse the lock pin.

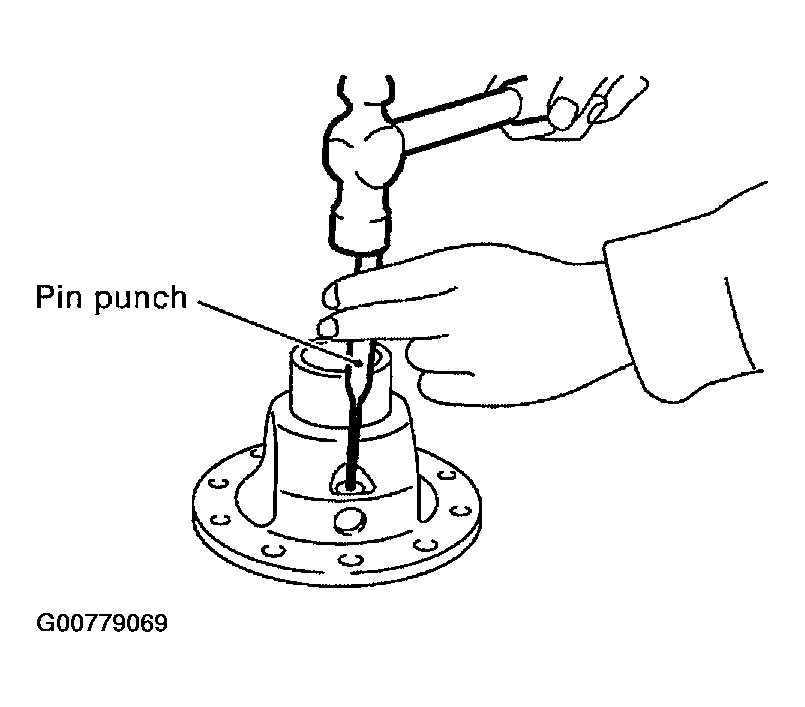

Fig 6: Drive A New Lock Pin Into The Pinion Mate Shaft Using A Pin Punch As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential side bearing (transaxle case side) using Tool as shown.

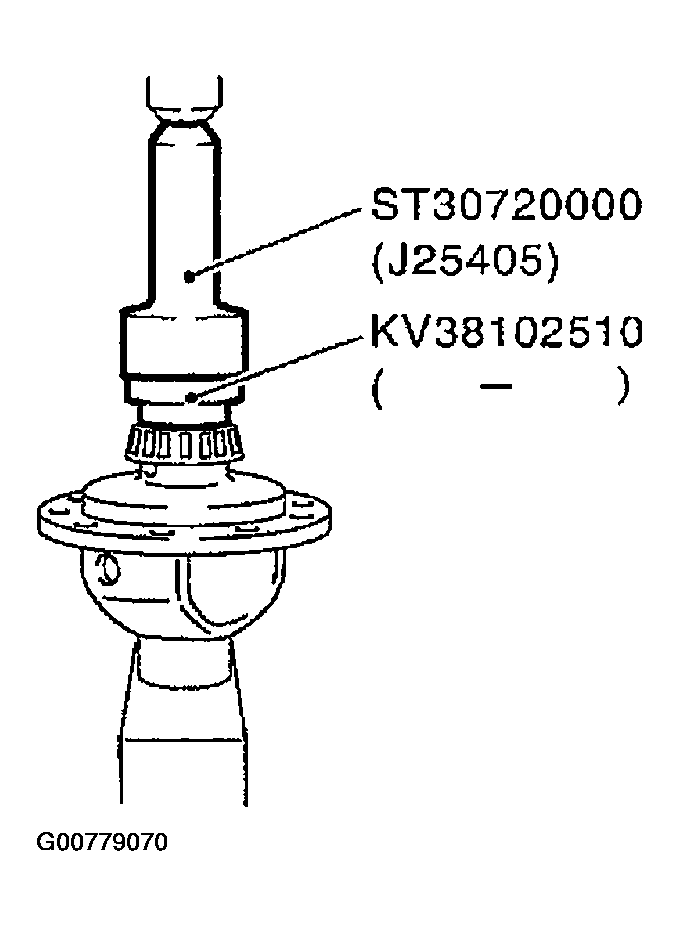

Fig 7: Install Differential Side Bearing (Transaxle Case Side) Using Tool As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Align and install speedometer drive gear onto differential case as shown.

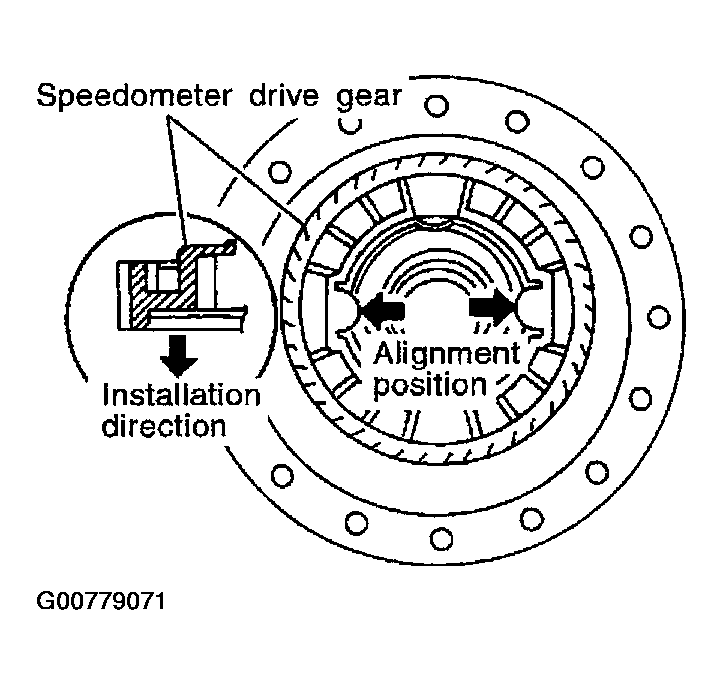

Fig 8: Align And Install Speedometer Drive Gear Onto Differential Case As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential side bearing (clutch housing side) using Tool as shown.

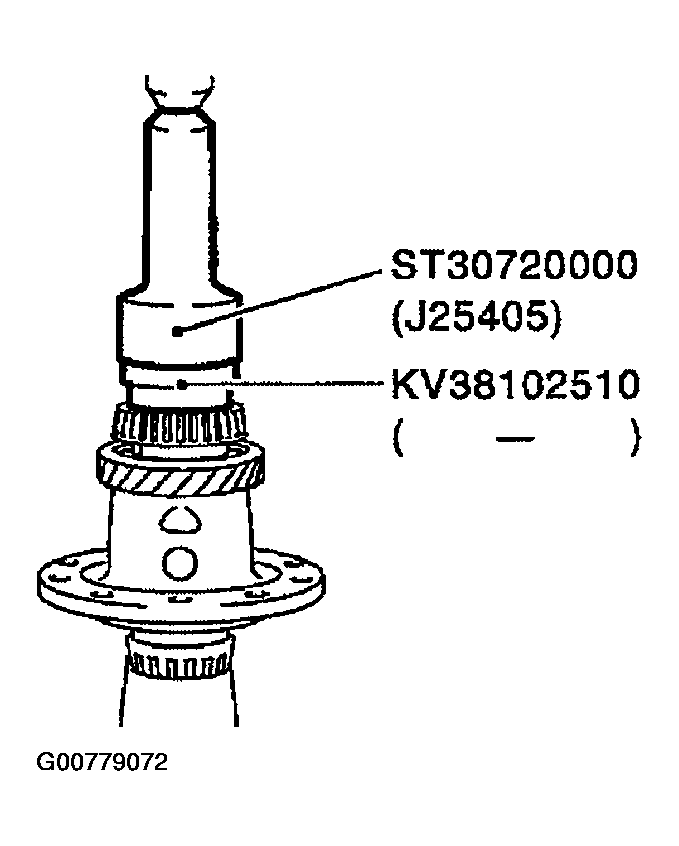

Fig 9: Install Differential Side Bearing (Clutch Housing Side) Using Tool As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the final gear into the differential case, and tighten the final gear bolts to specification.
Final gear bolts : 122.5 - 137.5 N.m (13 - 14 kg-m,

91 - 101 ft-lb)

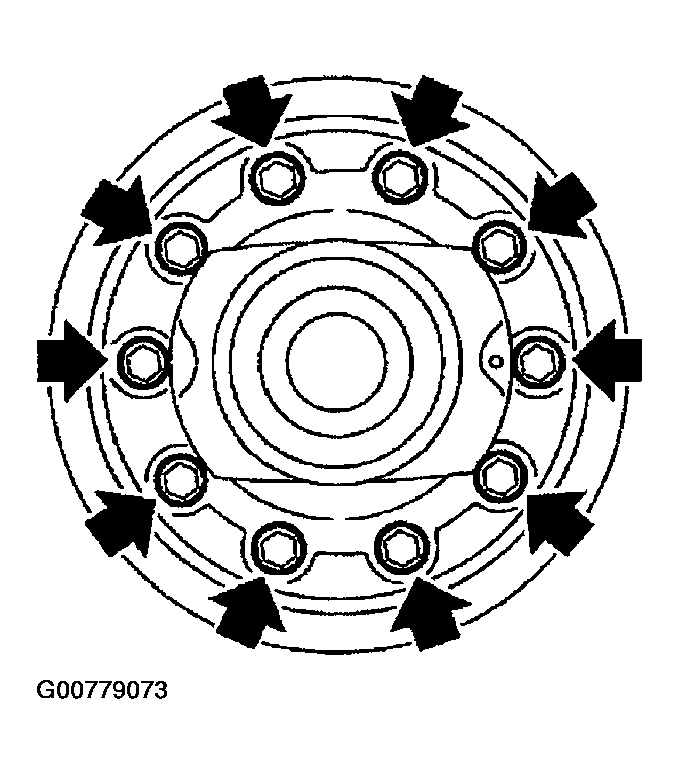

Fig 10: Install The Final Gear Into The Differential Case, And Tighten Bolts To Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
