Removal Of Liquid Gasket Sealing

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

After removing the mounting bolts and nuts, separate the mating surface using Tool and remove the liquid gasket sealing.
1. Tool number : KV10111100 (J37228)
CAUTION: Be careful not to damage the mating surfaces.
In areas where the cutter is difficult to use, use a plastic hammer to lightly tap (1) the cutter where the Silicone RTV Sealant is applied. Use a plastic hammer to slide the cutter (2) by tapping on the side.

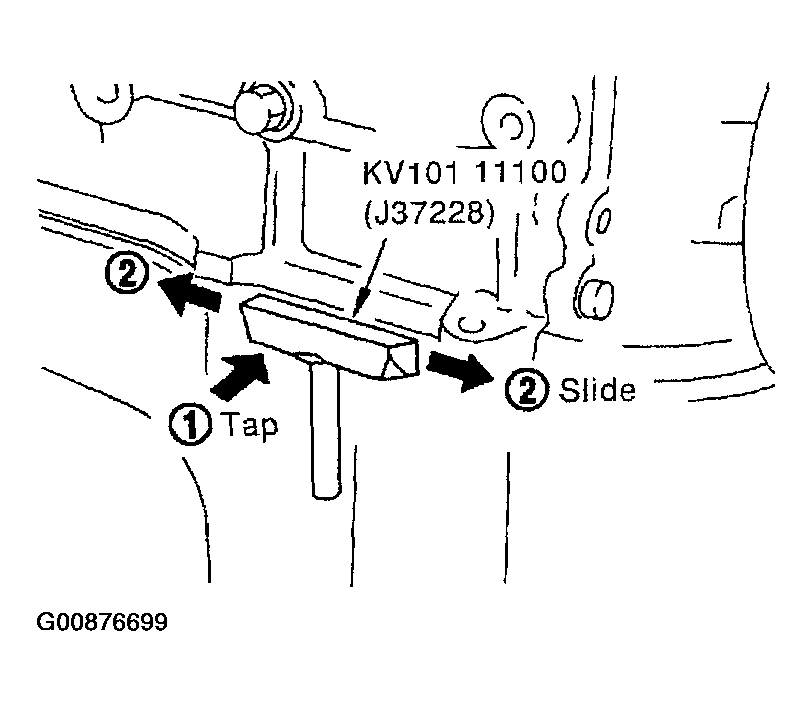

Fig 1: Removal Of Liquid Gasket Sealer

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: If for some unavoidable reason a tool such as a flat-bladed screwdriver is used, be careful not to damage the mating surfaces.
