Removal And Installation Of Front Oil Seal: Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Apply new engine oil to new oil seal and install it flush with front of mounting surface using a suitable tool.

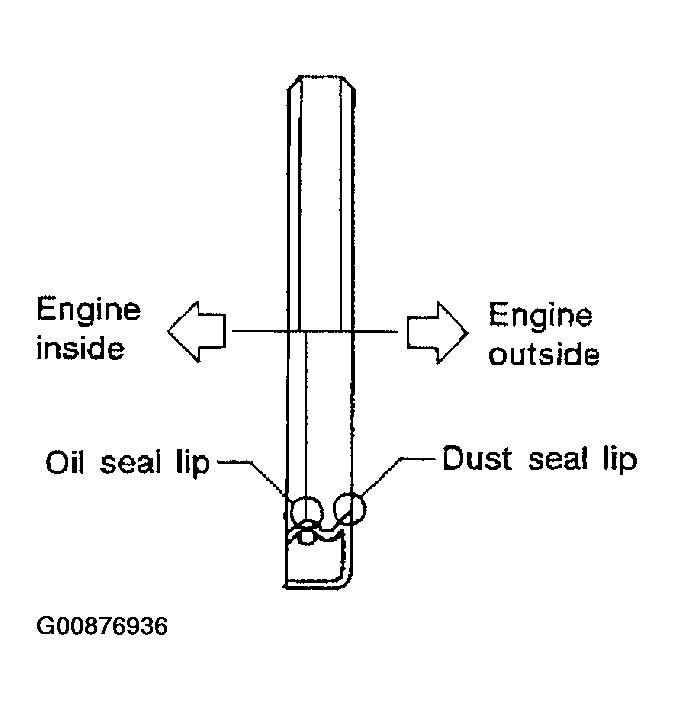

- Install new oil seal in the direction shown.
  1. Suitable drift
    1. Outer diameter : 59 mm (2.32 in)
    2. Inner diameter : 49 mm (1.93 in)
CAUTION: Press fit straight and avoid causing burrs or tilting the oil seal.

Fig 1: Front Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install crankshaft pulley and tighten the bolt in two steps.
- Lubricate thread and seat surface of the bolt with new engine oil.
- Apply a paint mark for the second step of angle tightening.
  1. Step 1 : 39 - 49 N.m (4.0 - 5.0 kg-m, 29 - 36 ft-lb)
  2. Step 2 : 60° - 65° degrees clockwise

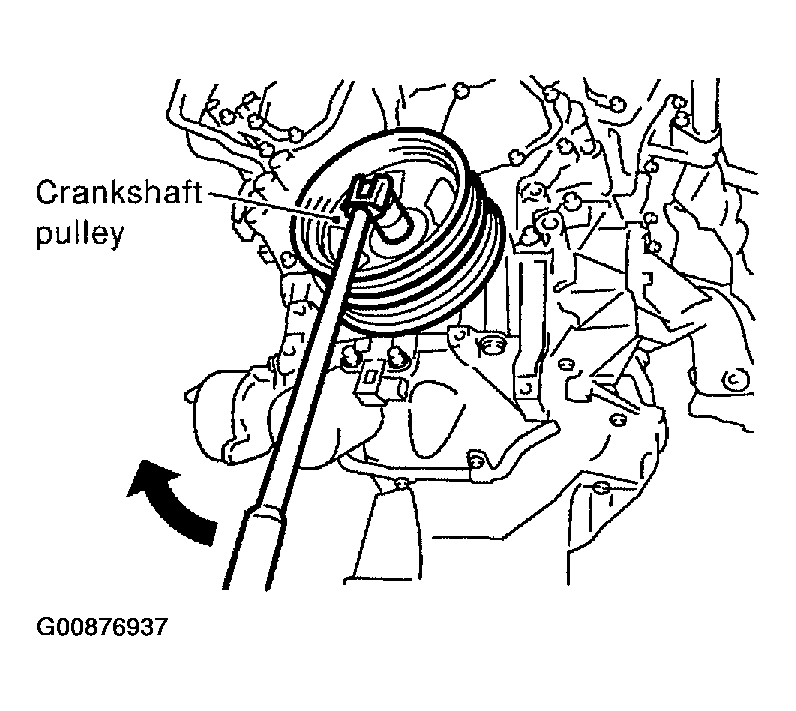

Fig 2: Install Crankshaft Pulley And Tighten The Bolt In Two Steps
Courtesy of NISSAN MOTOR CO., U.S.A.

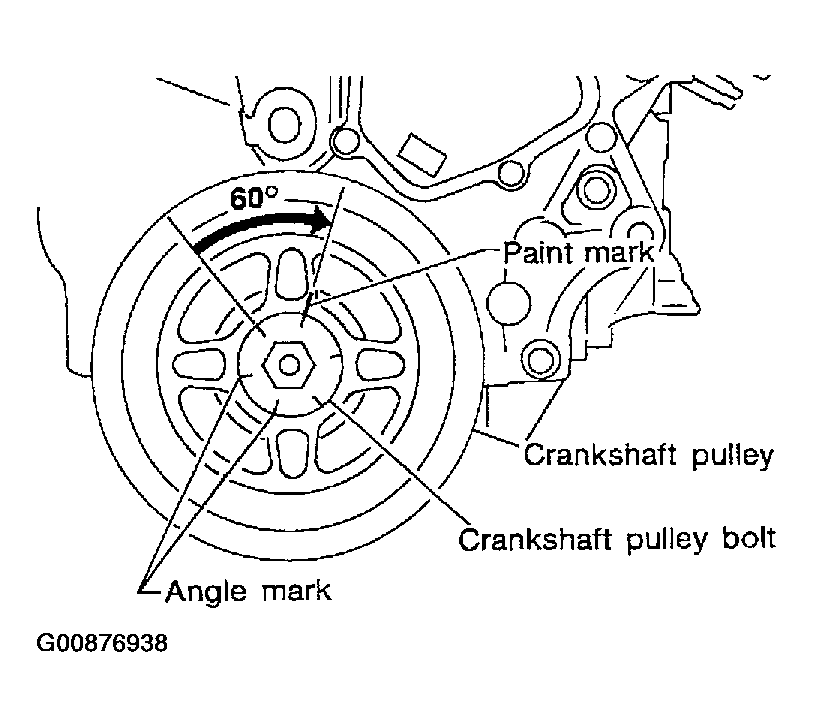

Fig 3: Apply A Paint Mark For The Second Step Of Angle Tightening
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove Tool attached to the mounting bolt hole.
1. Tool number : KV10117700 (J44716)

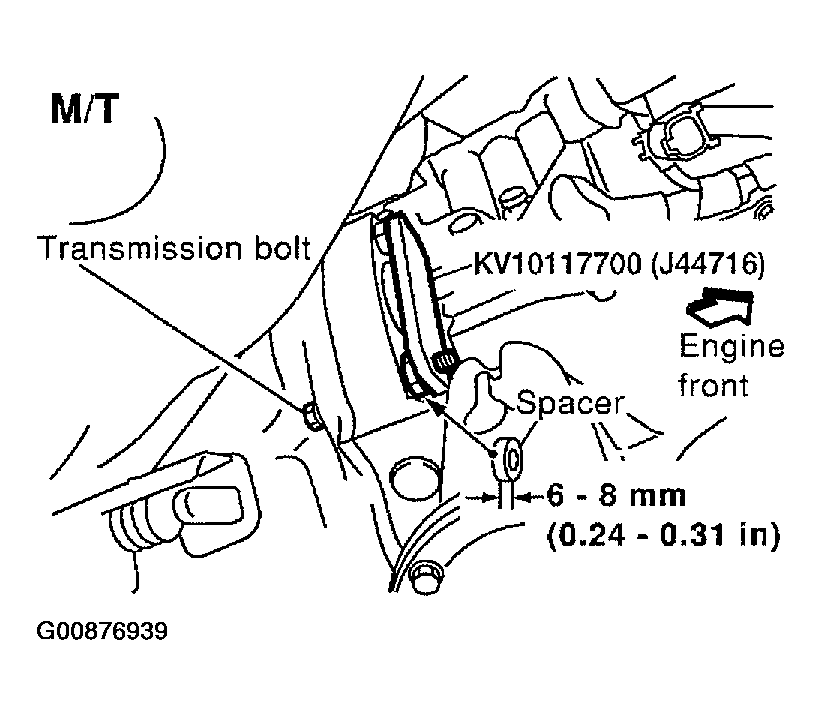

Fig 4: Remove Tool Attached To The Mounting Bolt Hole (M/T)
Courtesy of NISSAN MOTOR CO., U.S.A.

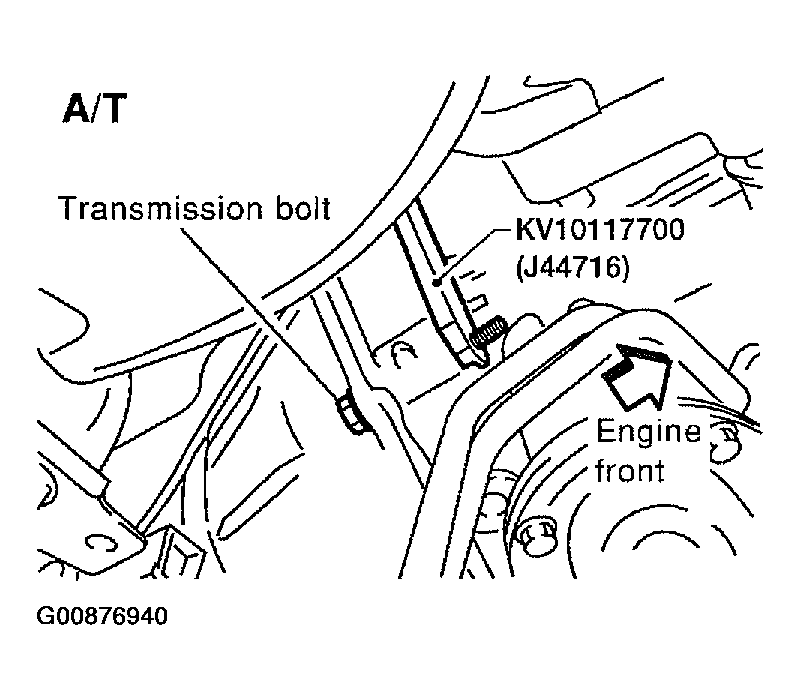

Fig 5: Remove Tool Attached To The Mounting Bolt Hole (A/T)
Courtesy of NISSAN MOTOR CO., U.S.A.
Installation of the remaining components is in reverse order of removal.
