Use The Chart Below To Help You Find The Cause Of The Symptom

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate the area where noise occurs.
  2. Confirm the type of noise.
  3. Specify the operating condition of engine.
  4. Check specified noise source. Repair or replace the identified part as necessary.

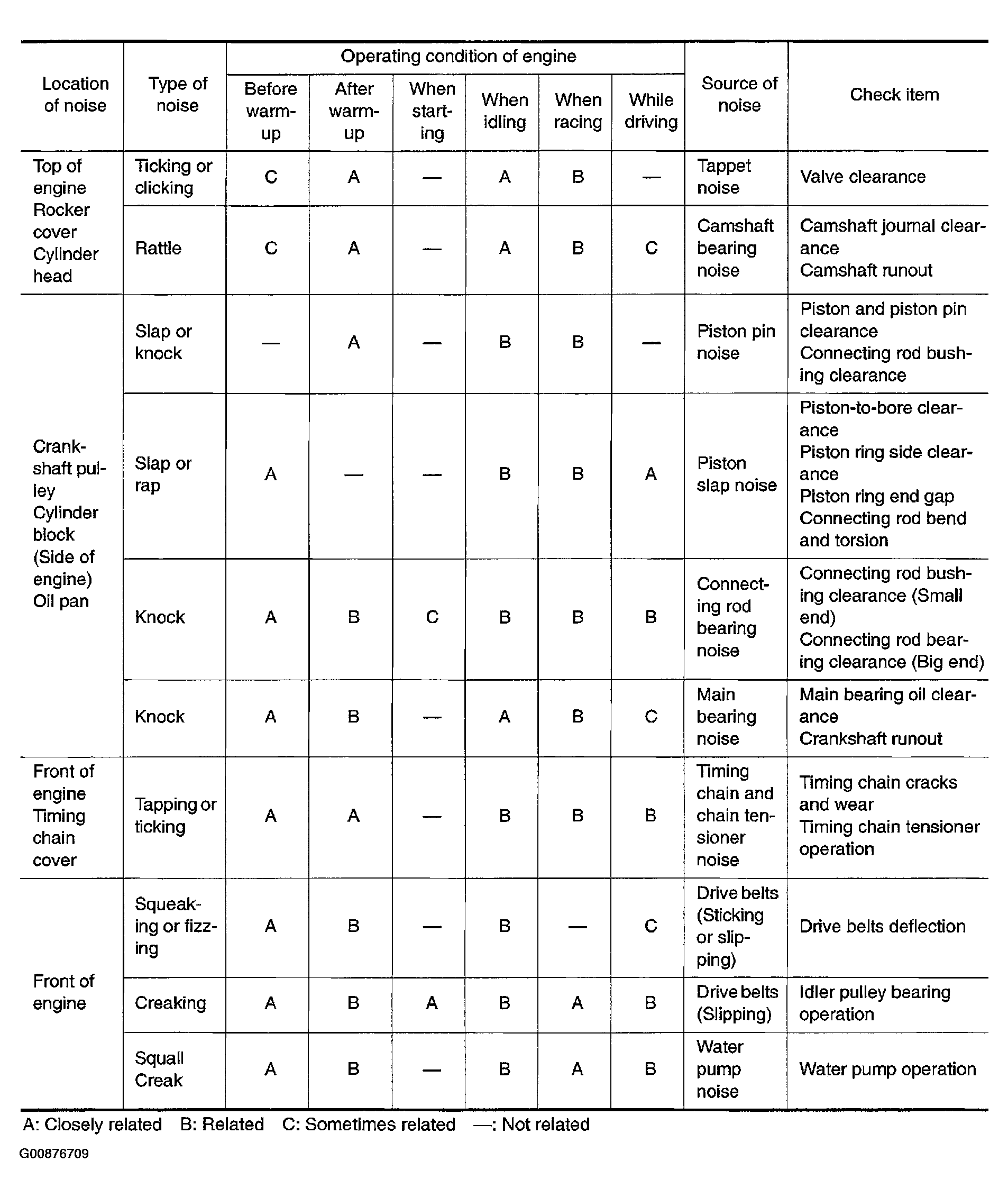

Fig 1: Noise, Vibration, And Harshness (NVH) Troubleshooting Chart
G00876709Courtesy of NISSAN MOTOR CO., U.S.A.
