Surface Distortion

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Using straightedge and feeler gauge, inspect the surface distortion of both the intake manifold and the intake manifold collector.

Limit : 0.1 mm (0.004 in)

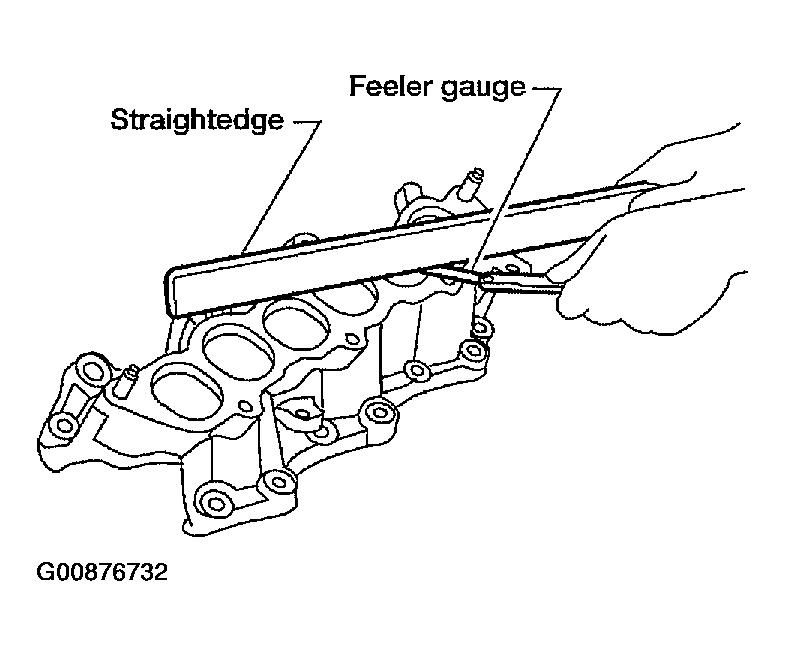

Fig 1: Using Straightedge & Feeler Gauge, Inspect The Surface Distortion (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

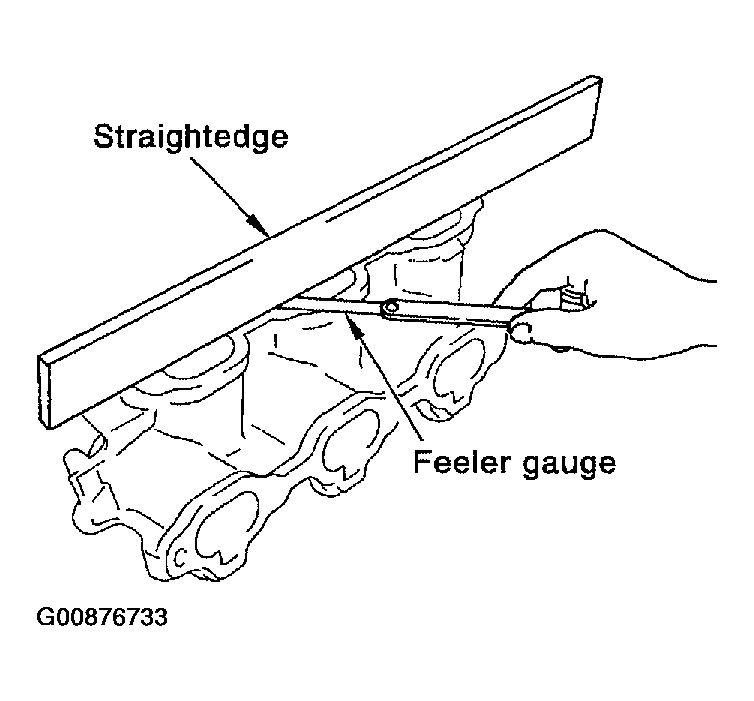

Fig 2: Using Straightedge & Feeler Gauge, Inspect The Surface Distortion (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
