Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • To avoid the danger of being scalded, never drain the coolant when the engine is hot.
  • The gasket for intake manifold collector (upper) is secured together with intake manifold collector (lower) bolt. Thus, when replacing only the upper gasket the lower gasket must also be replaced.
  1. Remove the cowl top. Refer to COWL TOP .
  2. Remove the windshield wiper assembly. Refer to REMOVAL AND INSTALLATION FOR WIPER MOTOR .
  3. Remove the engine cover using power tool.

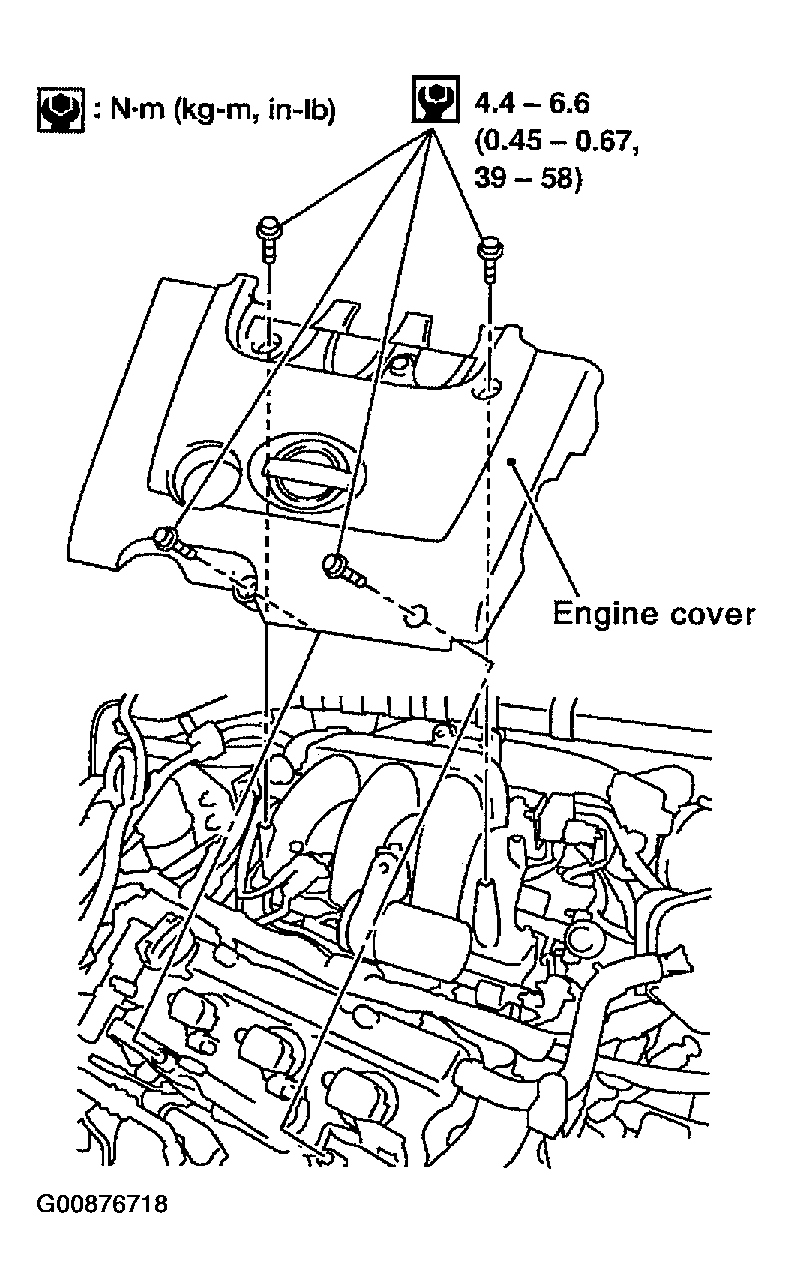

    Fig 1: Remove The Engine Cover
    G00876718Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove air cleaner case lid and mass air flow sensor, and air intake tube as an assembly.

    Refer to SENDING UNITS & SENSORS .

  5. Partially drain the coolant when the engine is cool. Refer to DRAINING ENGINE COOLANT .
  6. Disconnect the following:
    • Power brake booster vacuum hose
    • Coolant hoses from the intake manifold collector
    • Swirl control vacuum lines to power valve and intake manifold collector upper
    • Fuel injector electrical connectors
    • PCV hose
    • Electric throttle control actuator electrical connector
    • EVAP canister purge hose
    • EGR temperature sensor electrical connector
    CAUTION:
    • Cover any engine openings to avoid the entry of any foreign material.
  7. Remove the EGR tube (to lower intake manifold collector) nuts.
  8. Disconnect the power steering hose bracket from the rear of the intake manifold collector.
  9. Remove the EVAP canister purge volume solenoid valve bracket bolt. Position the valve aside.
  10. Remove the VIAS control solenoid valve bracket bolt. Position the valve aside.
  11. Remove the vacuum tank.
  12. Remove the intake manifold collector support bracket from the back of the intake manifold collector using power tool.
  13. Loosen the intake manifold collector bolts in the order shown using power tool, and remove the intake manifold collector and gasket.

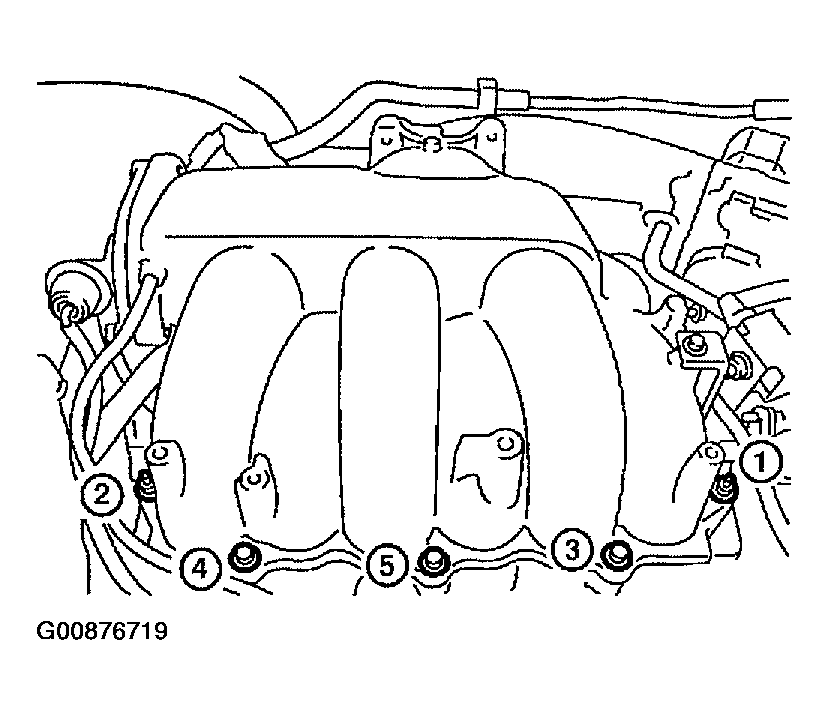

    Fig 2: Loosen The Intake Manifold Collector Bolts
    G00876719Courtesy of NISSAN MOTOR CO., U.S.A.
  14. If necessary, remove the electric throttle control actuator bolts in the order shown and remove the electric throttle control actuator.
    CAUTION:
    • Handle carefully to avoid any shock to the electric throttle control actuator.
    • Do not disassemble.

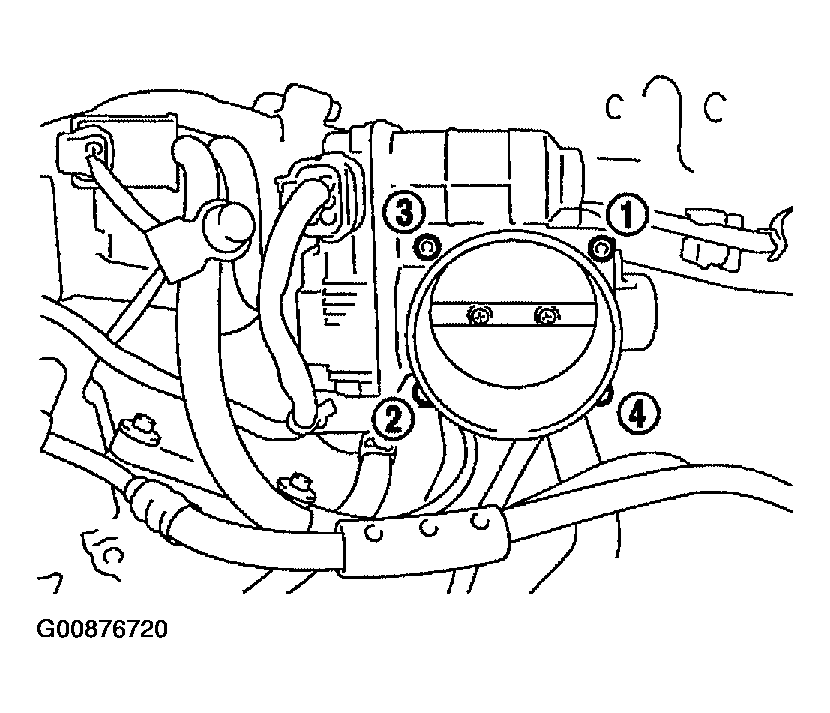

    Fig 3: Electric Throttle Control Actuator
    G00876720Courtesy of NISSAN MOTOR CO., U.S.A.
  15. If necessary, remove the intake manifold collector (upper) bolts in the order shown, using power tool and remove the intake manifold collector.
    CAUTION: Handle carefully to avoid any shock to the electric throttle control actuator, if installed.

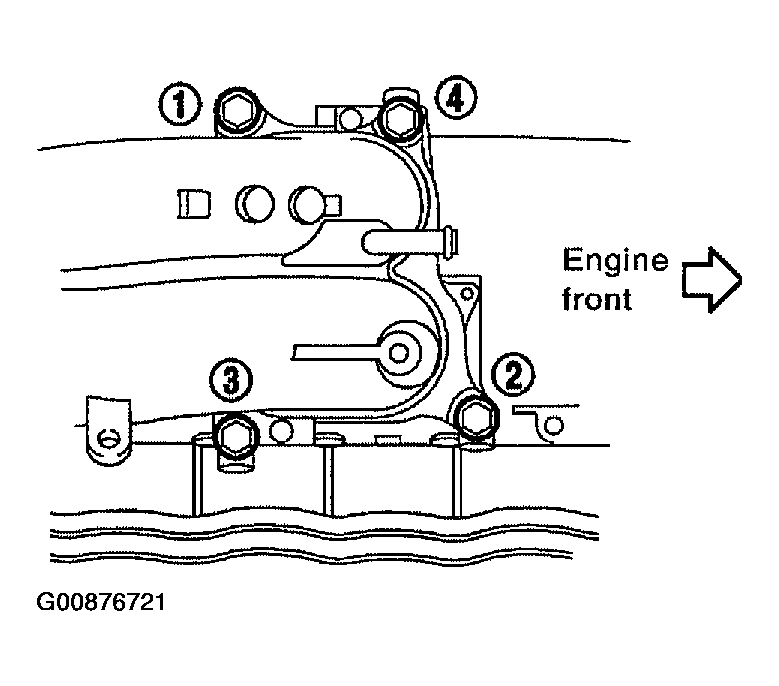

    Fig 4: Intake Manifold Collector (Upper) Bolts
    G00876721Courtesy of NISSAN MOTOR CO., U.S.A.
  16. If necessary, remove power valve bolts in the order shown and remove the power valve.

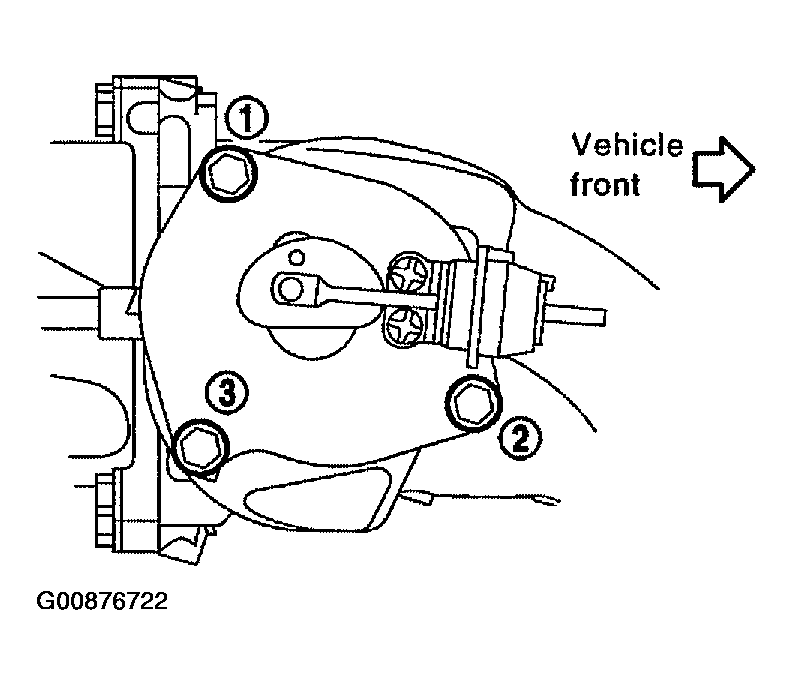

    Fig 5: Power Valve Bolts
    G00876722Courtesy of NISSAN MOTOR CO., U.S.A.
  17. If necessary remove the following components:
    • Vacuum tank
    • VIAS control solenoid valve
    • EVAP canister purge volume control solenoid valve
