Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

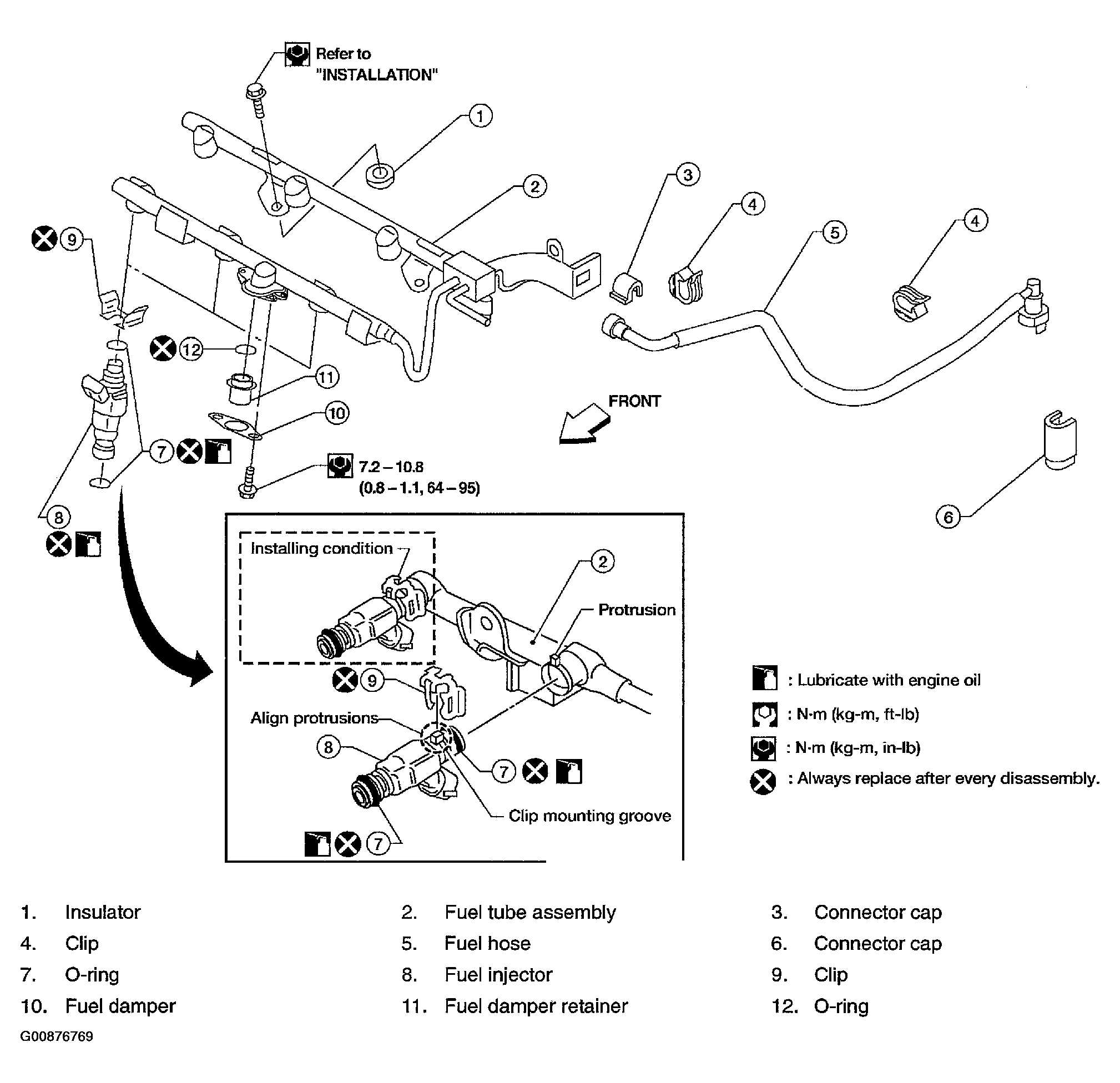

Fig 1: Fuel Injector And Fuel Tube Removal & Installation
G00876769Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Apply new engine oil when installing the parts as specified to do so.
  • Do not remove or disassemble parts unless instructed as shown.
