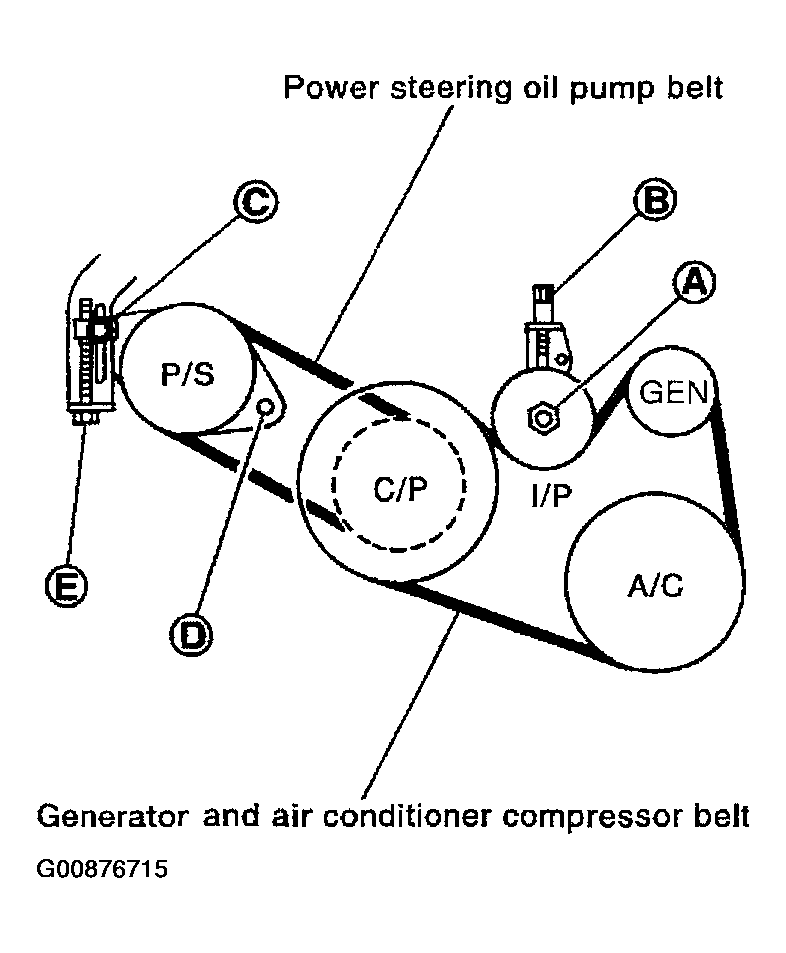

Power Steering Oil Pump Belt
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Remove engine undercover.
- Loosen adjusting bolt (C).
- Loosen power steering oil pump bolt (D).NOTE: Bolt head (D) is at the engine rear side.
- Adjust by turning the adjusting bolt (E).
- For specified belt tension, refer to DRIVE BELTS .
NOTE: Adjusting bolt (E) is loosened with counterclockwise rotation. - Tighten adjusting bolt (C).
- Adjusting bolt : 15.5 - 18.6 N.m (1.6 - 1.8 kg-m, 12 - 13 ft-lb)
- Tighten power steering oil pump bolt (D).
- Power steering pump bolt : 36.3 - 50.0 N.m (3.7 - 5.1 kg-m, 27 - 36 ft-lb)
