Generator And Air Conditioner Compressor Belt

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine undercover.
  2. Loosen idler pulley lock nut (A) and adjust by turning adjusting bolt (B).
  3. Tighten lock nut (A).
    1. Lock nut : 25.5 - 32.4 N.m (2.6 - 3.3 kg-m, 19 - 23 ft-lb)
  4. Tighten adjusting bolt (B).
    1. Adjusting : 3.9 - 6.9 N.m (0.4 - 0.7 kg-m, 35 - 61 in-lb) bolt

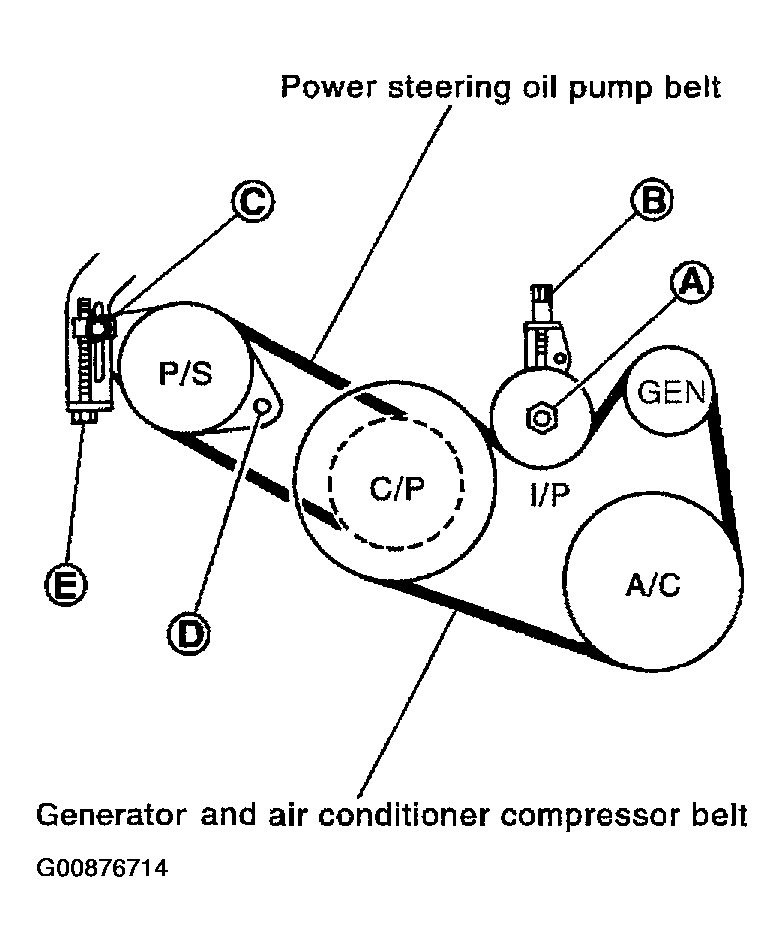

Fig 1: Generator & Air Conditioner Compressor Belt Adjustment Procedure
G00876714Courtesy of NISSAN MOTOR CO., U.S.A.
