Inspection After Disassembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install valve guide. Refer to "VALVE GUIDE REPLACEMENT ".
  2. Install valve seat. Refer to "VALVE SEAT REPLACEMENT ".
  3. Install new valve spring seats and new valve oil seals using Tool.
    1. Tool number: (J39386)
    • Install with valve oil seal drift to match dimension in illustration.
    NOTE: Dimension "H": Height measured before valve spring seat installation.
    1. Height "H"
    2. Intake and exhaust: 14.3 - 14.9 mm (0.563 - 0.587 in)

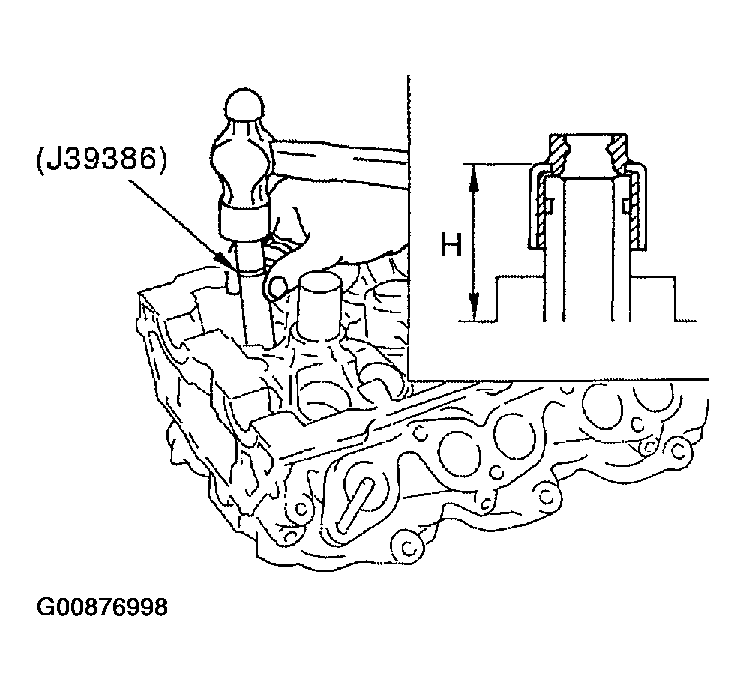

    Fig 1: Install New Valve Spring Seats And New Valve Oil Seals Using Tool
    G00876998Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install the valves in their original position, as marked during disassembly.
  5. Install valve spring (uneven pitch type).

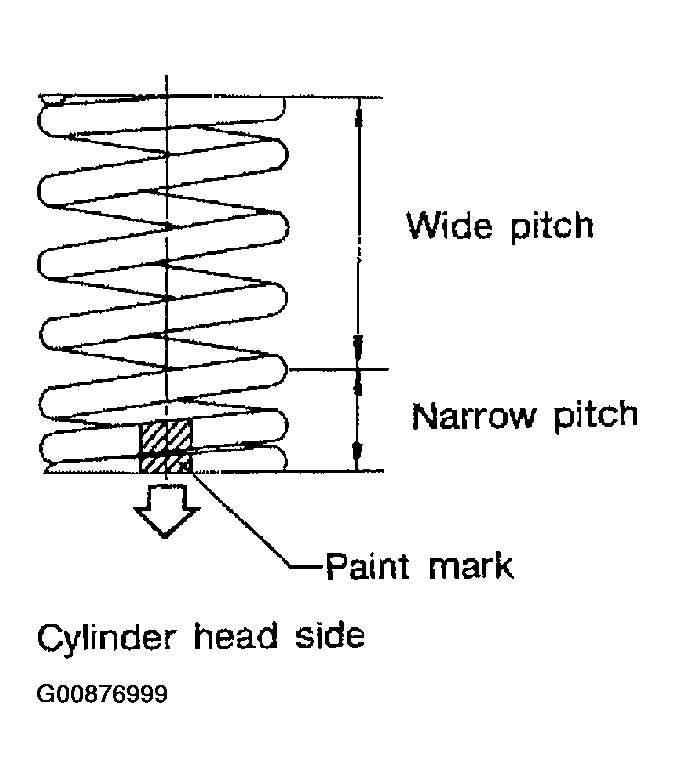

    Fig 2: Install Valve Spring (Uneven Pitch Type)
    G00876999Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install smaller pitch end (paint mark) to cylinder head side (valve spring seat side).
  6. Install valve spring retainer.
  7. Install valve collet.
    1. Tool numbers: KV10116200 (J26336-B)
    2. : KV10115900 (J26336-20)
    3. : KV10109230 (-)
    • Compress valve spring using Tool and install valve collet.

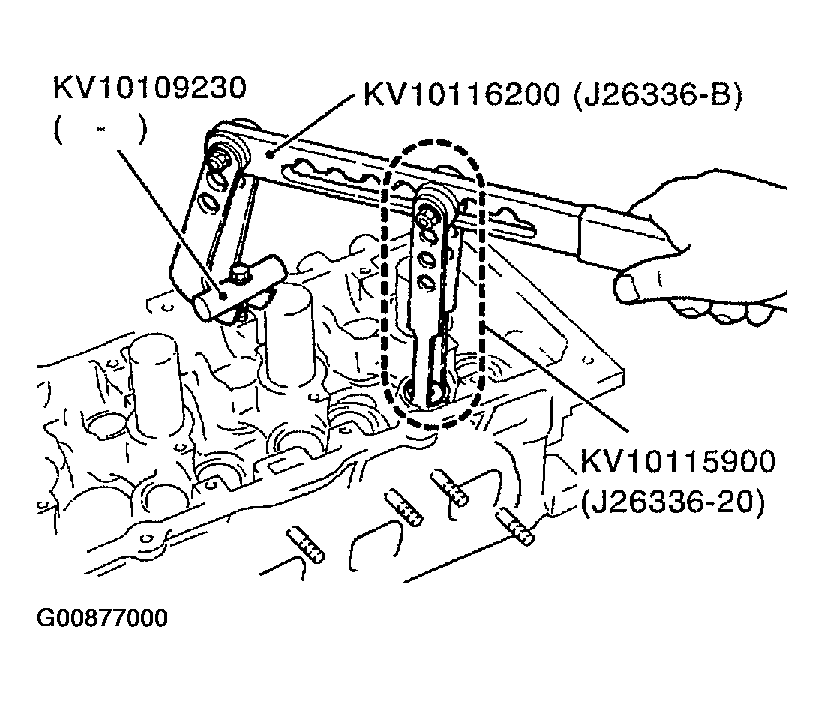

      Fig 3: Compress Valve Spring Using Tool And Install Valve Collet
      G00877000Courtesy of NISSAN MOTOR CO., U.S.A.
    • Tap stem edge lightly with plastic hammer after installation to check its installed condition.
  8. Install valve lifter.
  9. Install spark plug tube as follows:
    1. Remove old liquid gasket from cylinder head mounting hole.
    2. Apply liquid gasket to area within approximately 12 mm (0.47 in) from edge of spark plug tube press fit side.
    3. Using a drift, press fit the spark plug tube so that it height "H" is as specified.
      1. Standard press fit height "H": 38.55 - 38.65 mm (1.5177 - 1.5217 in)

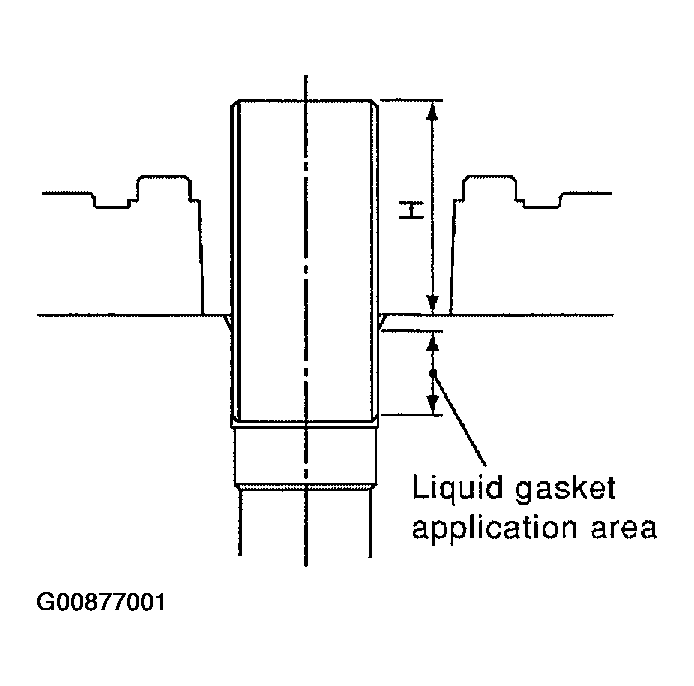

      Fig 4: Install Spark Plug Tube
      G00877001Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • When press fitting, take care not to deform spark plug tube.
      • After press fitting, wipe off liquid gasket protruding onto cylinder head upper face.
  10. Install spark plug with spark plug wrench.
    1. Spark plug: 20 - 29 N.m (2.0 - 3.0 kg-m, 14 - 22 ft-lb)
