Outer Diameter of Piston Pin

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Measure outer diameter of piston pin "Dp".
1. Standard diameter "Dp"
  1. Grade No. 0: 21.989 - 21.995 mm (0.8657 - 0.8659 in)
  2. Grade No. 1: 21.995 - 22.001 mm (0.8659 - 0.8662 in)

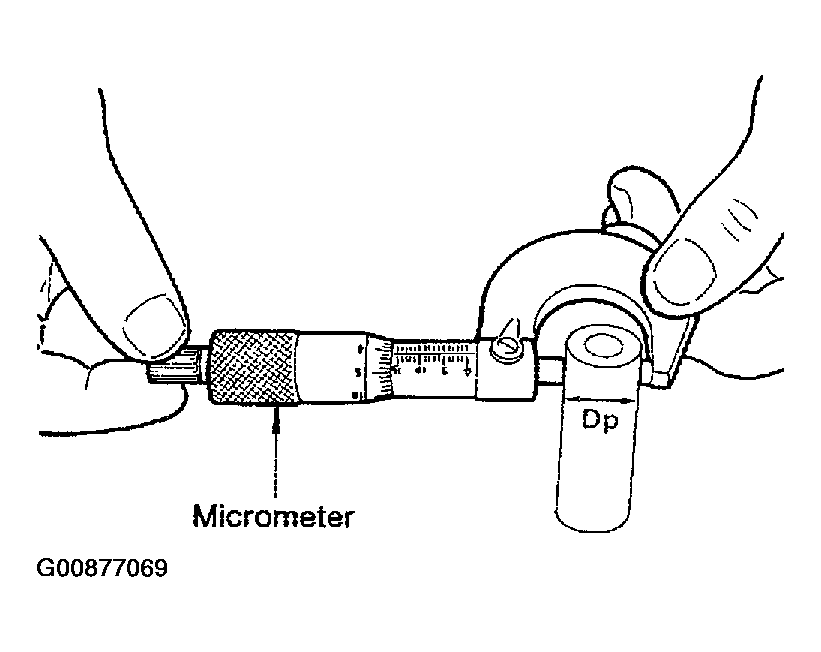

Fig 1: Measuring Outer Diameter Of Piston Pin

Courtesy of NISSAN MOTOR CO., U.S.A.
