Inner Diameter of Piston Pin Hole

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Measure the inner diameter of piston pin hole "dp".
1. Standard diameter "dp"
  1. Grade No. 0: 21.993 - 21.999 mm (0.8659 - 0.8661 in)
  2. Grade No. 1: 21.999 - 22.005 mm (0.8661 - 0.8663 in)

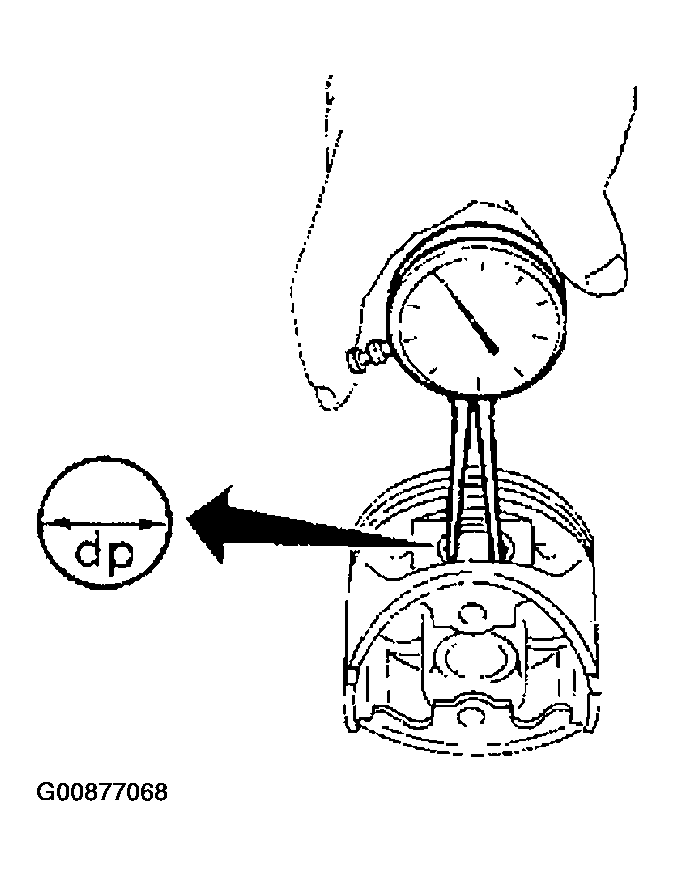

Fig 1: Measuring Inner Diameter Of Piston Pin Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
