Outer Diameter Of Main Bearing Cap Bolts

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Measure outer diameters (d1, d2) at two positions as shown.
Measure d2 at a point with A.
1. Limit: 0.11 mm (0.0051 in)
When the value of d1 - d2 exceeds the limit (a large difference in dimensions) replace the bolt with a new one.

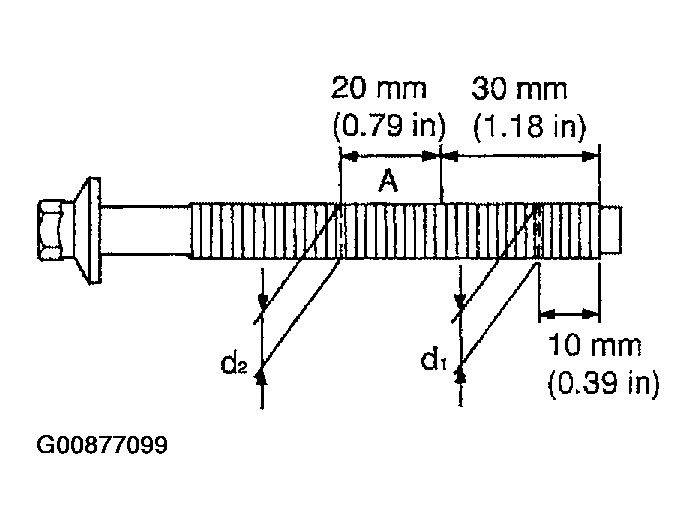

Fig 1: Measuring Outer Diameter Of Main Bearing Cap Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
