Outer Diameter Of Connecting Rod Bolts
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

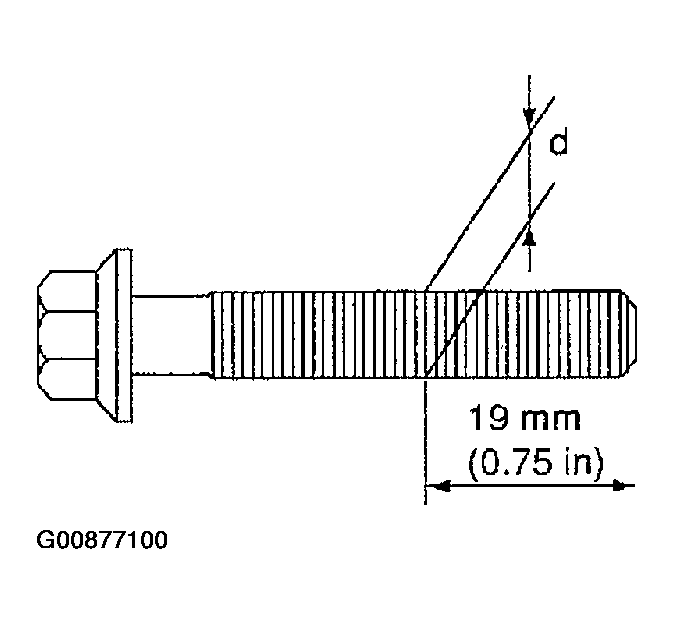

- Measure outer diameter d as shown.
- Standard: 7.90 - 8.00 mm (0.3110 - 0.3150 in)
- Limit: 7.75 mm (0.3051 in)
- When the value of d exceeds the limit (when it becomes thinner) replace the bolt with a new one.
Courtesy of NISSAN MOTOR CO., U.S.A.
