Out-Of-Round And Taper Of Crankshaft

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the crankshaft main and pin journals for scoring, wear, or cracks.
Measure the journals for taper and out-of-round.
1. Standard
  1. Out-of-round (difference between, X - Y): 0.002 mm (0.0001 in)
  2. Taper (difference between, A - B): 0.002 mm (0.0001 in)

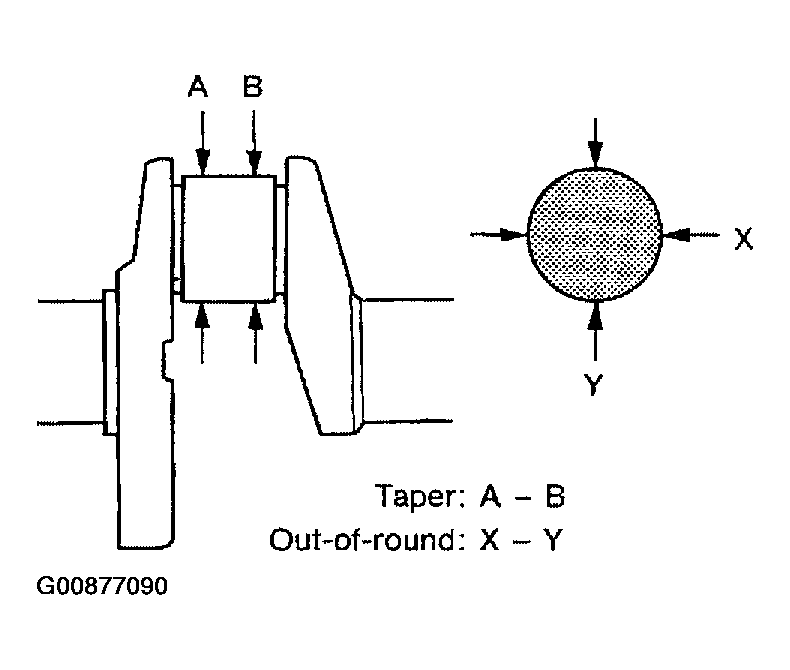

Fig 1: Measure The Journals For Taper And Out-Of-Round

Courtesy of NISSAN MOTOR CO., U.S.A.
