Method by Calculation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the main bearings to the cylinder block and bearing cap. Refer to "ASSEMBLY ".
  2. Calculate the main bearing clearance. (Oil clearance) = (Inner diameter of main bearing) - (Outer diameter of crankshaft journal)
    1. Standard: 0.035 - 0.045 mm (0.0014 - 0.0018 in)
    2. Limit: 0.065 mm (0.0026 in)
  3. If the calculated clearance exceeds the specified limit, replace the bearings. Refer to "HOW TO SELECT MAIN BEARINGS ".

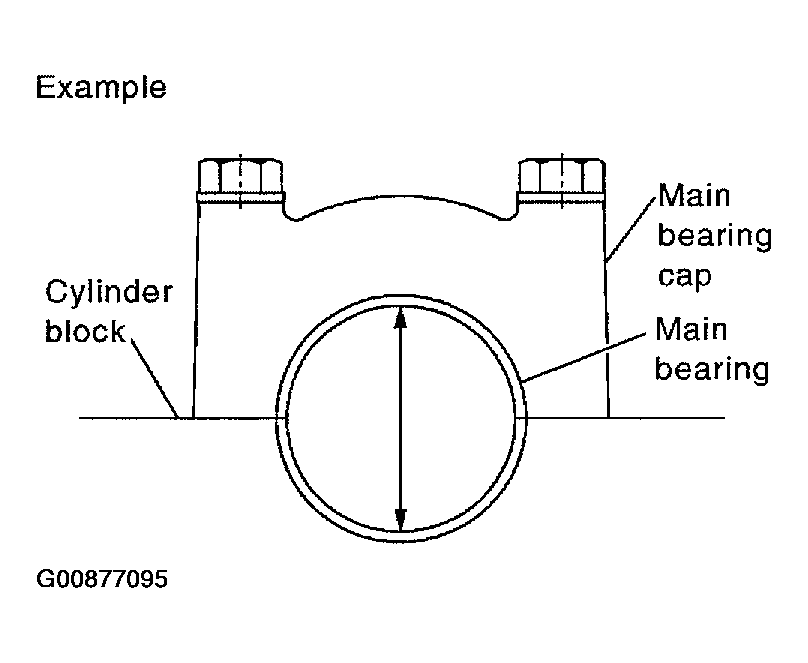

Fig 1: Calculate The Main Bearing Clearance. (Oil Clearance) = (Inner Diameter Of Main Bearing) - (Outer Diameter Of Crankshaft Journal)
G00877095Courtesy of NISSAN MOTOR CO., U.S.A.
