Movement Around in Rotation Direction

Check the movement amount with the following procedure:

1. Install a bolt to clutch cover mounting hole and place a torque wrench on the extended line of the flywheel center line.
   • Tighten the bolt at a force of 9.8 N.m (1 kg-m, 87 in-lb) to keep it from loosening.

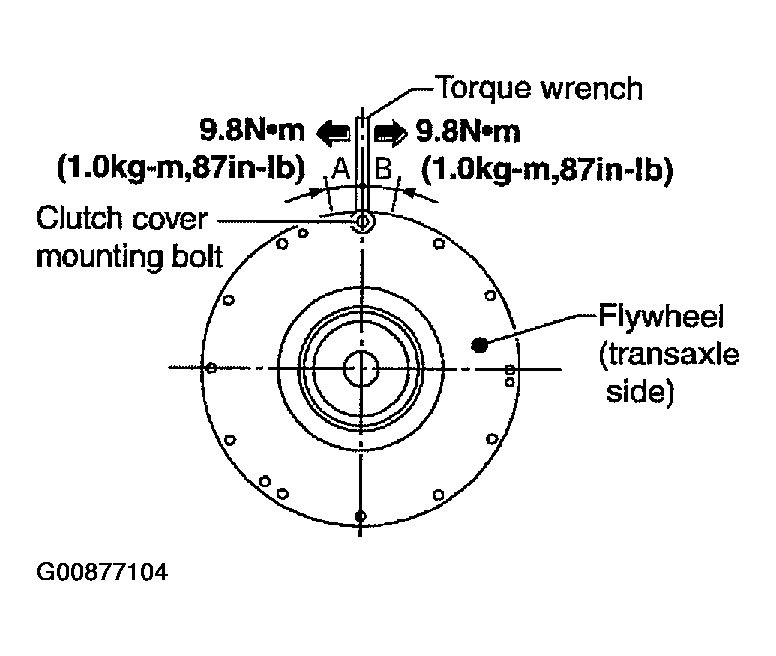

   Fig 1: Measuring Movement Around in Rotation Direction

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Put a mating mark on the circumference of the two flywheel masses without applying any load (measurement standard points).
3. Apply a force of 9.8 N.m (1 kg-m, 87 in-lb) in each direction, and mark the movement amount on the mass on the transaxle side.
4. Measure dimensions of movement amounts A and B on the circumference of the flywheel on the transaxle side.
   1. Flywheel movement in rotation direction: 24 mm (0.94 in) or less
   • When the measured value exceeds the standard, replace the flywheel.
