Drive Plate Runout (A/T)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Runout (Total Indicator Reading):

  1. Drive plate (A/T): less than 0.15 mm (0.0059 in)
CAUTION:
  • The signal plate is built into the drive assembly. Be careful not to damage the signal plate, particularly the teeth.
  • Check the drive plate and signal plate for deformation or cracks.
  • Keep any magnetized objects away from the signal plate, particularly the teeth.

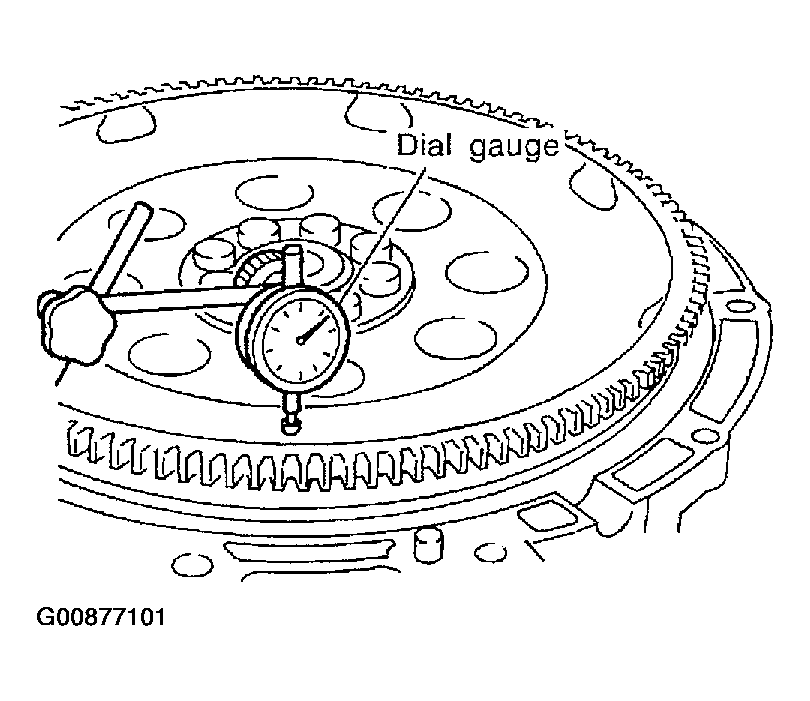

Fig 1: Measuring Drive Plate Runout (A/T)
G00877101Courtesy of NISSAN MOTOR CO., U.S.A.

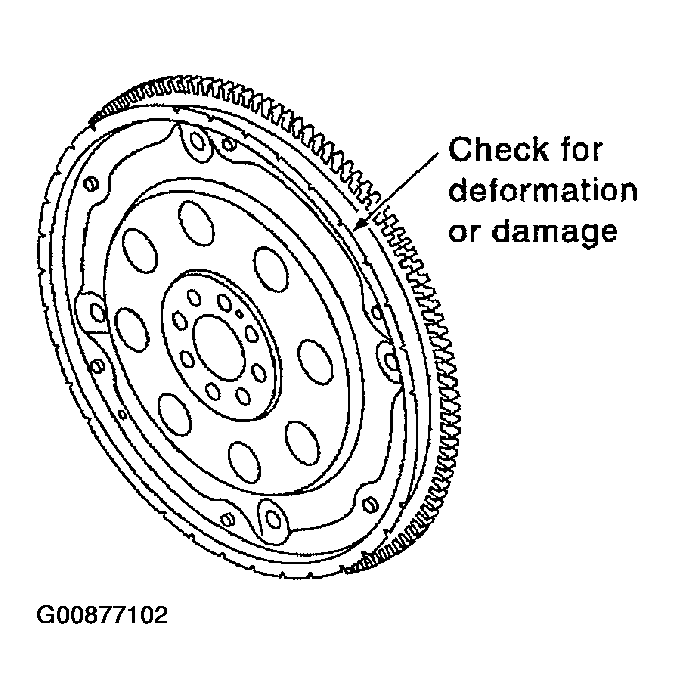

Fig 2: Check For Deformation Or Damage
G00877102Courtesy of NISSAN MOTOR CO., U.S.A.
