Crankshaft End Play

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Using a dial indicator, measure the clearance between the thrust bearings and the connecting rods when the crankshaft is moved from front to rear.
1. Standard: 0.10 - 0.25 mm (0.0039 - 0.0098 in)
2. Limit: 0.30 mm (0.0118 in)
If beyond the limit, replace the thrust bearings and measure again. If still beyond the limit, replace the crankshaft.

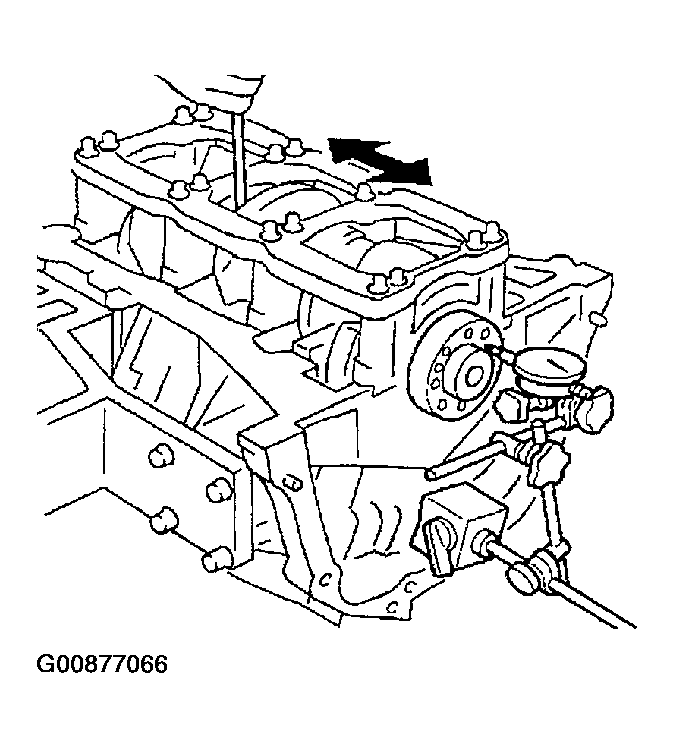

Fig 1: Measuring Crankshaft End Play

Courtesy of NISSAN MOTOR CO., U.S.A.
