Connecting Rod Side Clearance

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Measure the side clearance between the connecting rod and crankshaft with a feeler gauge.
1. Standard: 0.20 - 0.35 mm (0.0079 - 0.0138 in)
2. Limit: 0.40 mm (0.016 in)
If beyond the limit, replace the connecting rod and measure again. If still beyond the limit, replace the crankshaft.

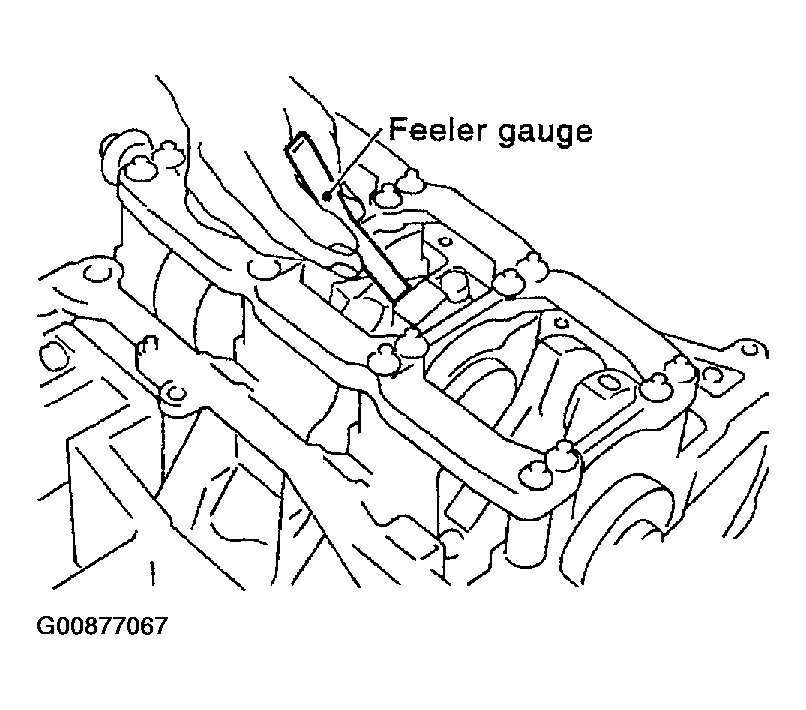

Fig 1: Measuring Connecting Rod Side Clearance

Courtesy of NISSAN MOTOR CO., U.S.A.
