Inner Diameter of Connecting Rod (Small End)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Measure inner diameter of piston pin bushing.
1. Standard
  1. Grade No. 0: 22.000 - 22.006 mm (0.8661 - 0.8664 in)
  2. Grade No. 1: 22.006 - 22.012 mm (0.8664 - 0.8666 in)

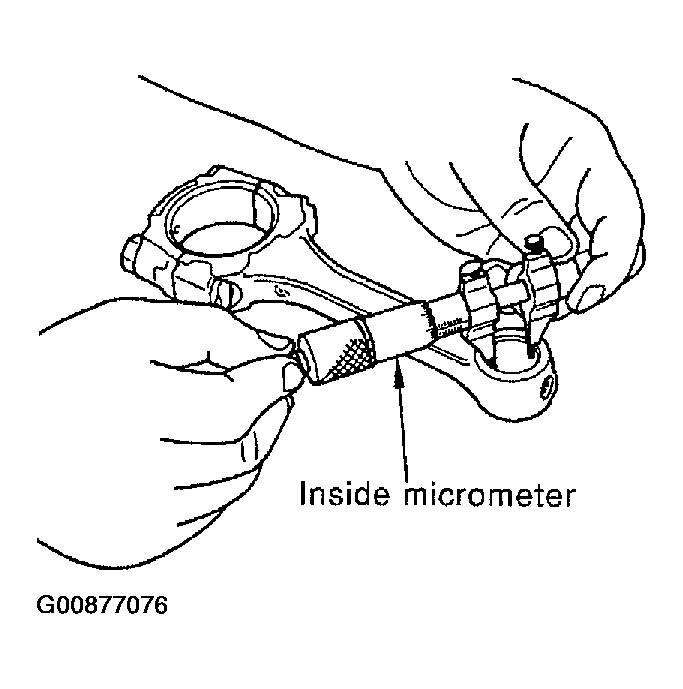

Fig 1: Measuring Inner Diameter Of Connecting Rod (Small End)

Courtesy of NISSAN MOTOR CO., U.S.A.
