When New Cylinder Block and Crankshaft are Used

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. "MAIN BEARING SELECTION TABLE " rows correspond to bearing housing grade on rear left side of cylinder block.

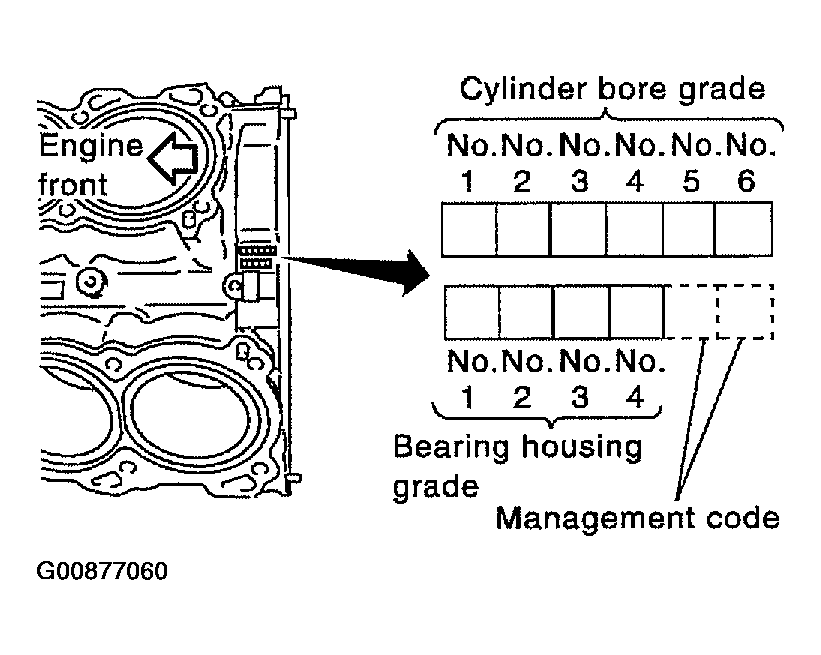

    Fig 1: When New Cylinder Block & Crankshaft Are Used
    G00877060Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Apply journal diameter grade stamped on crankshaft front side to column in "MAIN BEARING SELECTION TABLE "
  3. Find sign (main bearing grade) at crossing of row and column in "MAIN BEARING SELECTION TABLE "

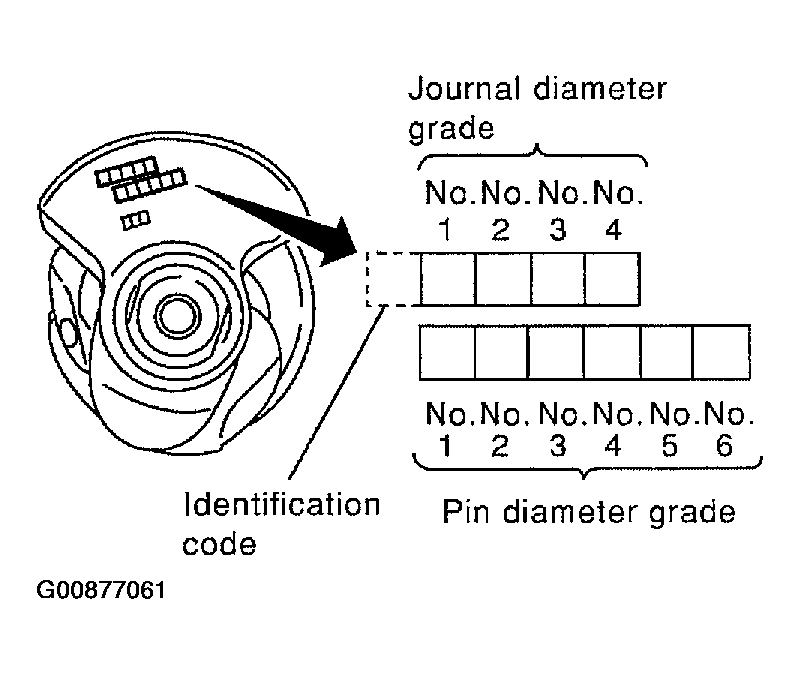

    Fig 2: Apply Journal Diameter Grade Stamped On Crankshaft Front Side To Column In Main Bearing Selection Table
    G00877061Courtesy of NISSAN MOTOR CO., U.S.A.
