Bearing Undersize Table

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

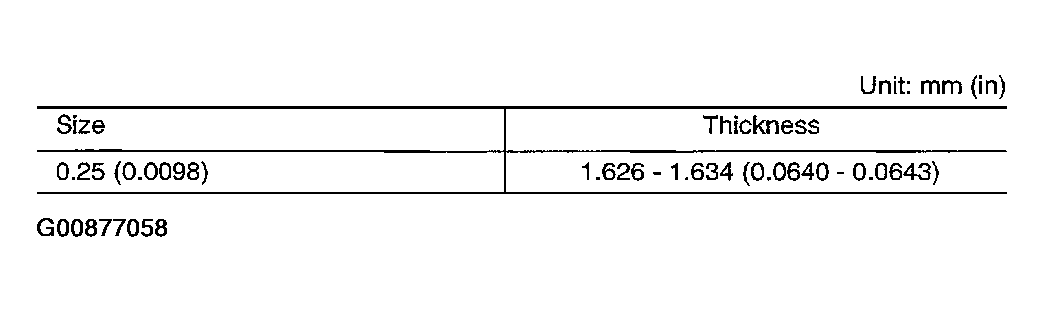

Fig 1: Bearing Undersize Table
G00877058Courtesy of NISSAN MOTOR CO., U.S.A.

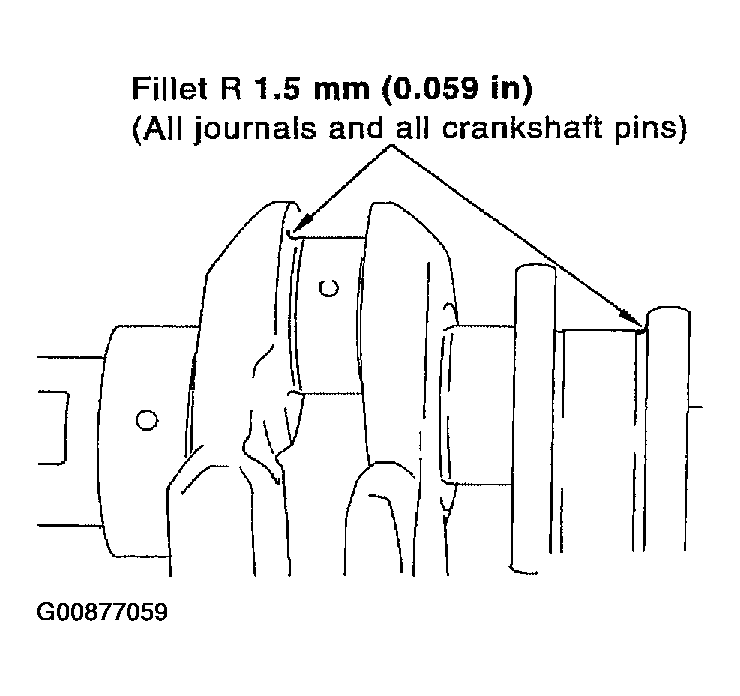

CAUTION: In grinding the crankshaft pin to use undersize bearings, keep the fillet R (all crankshaft pins).
Fig 2: In Grinding The Crankshaft Pin To Use Undersize Bearings, Keep The Fillet R (All Crankshaft Pins)
G00877059Courtesy of NISSAN MOTOR CO., U.S.A.
