When Cylinder Block is Reused

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the cylinder block bore inner diameter.
  2. Determine the bore grade by comparing the measurement with the values under the cylinder bore inner diameter of the "PISTON SELECTION TABLE ".
  3. Select the piston of the same grade.

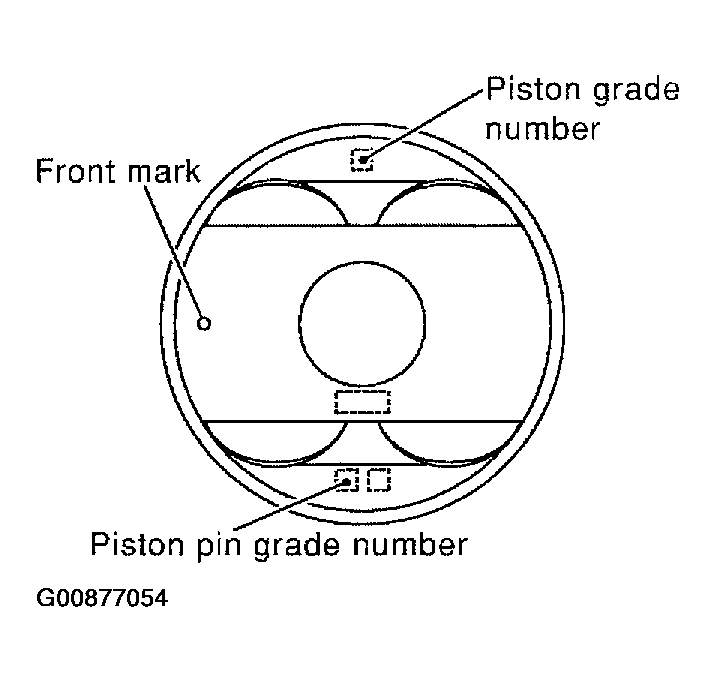

Fig 1: Locating Piston Grade Number
G00877054Courtesy of NISSAN MOTOR CO., U.S.A.
