Camshaft Sprocket Runout

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Put V-block on precise flat bed and support No. 2 and No. 4 journal of camshaft as shown.
Install camshaft sprocket on camshaft.
Measure camshaft sprocket runout.
1. Limit : 0.15 mm (0.0059 in)
If sprocket runout exceeds the limit, replace camshaft sprocket.

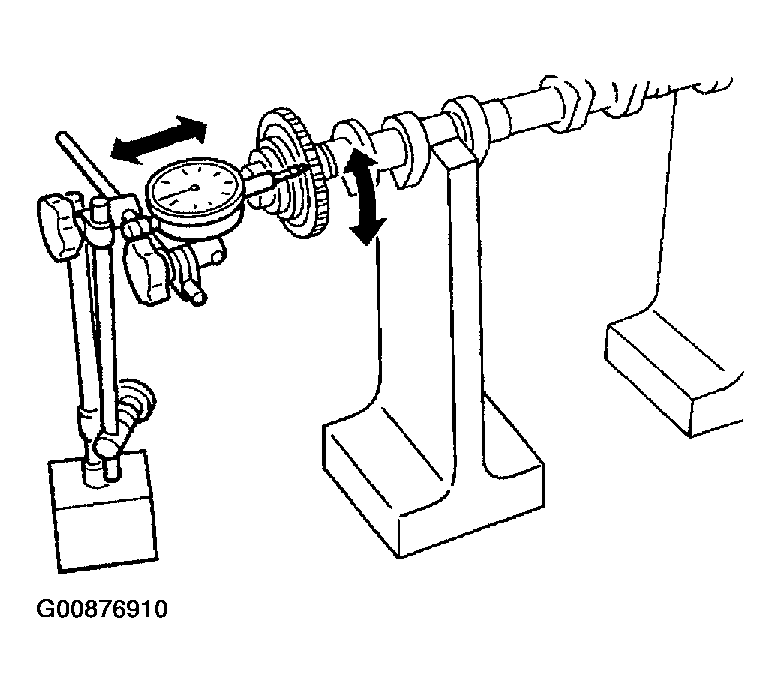

Fig 1: Measuring Camshaft Sprocket Runout

Courtesy of NISSAN MOTOR CO., U.S.A.
